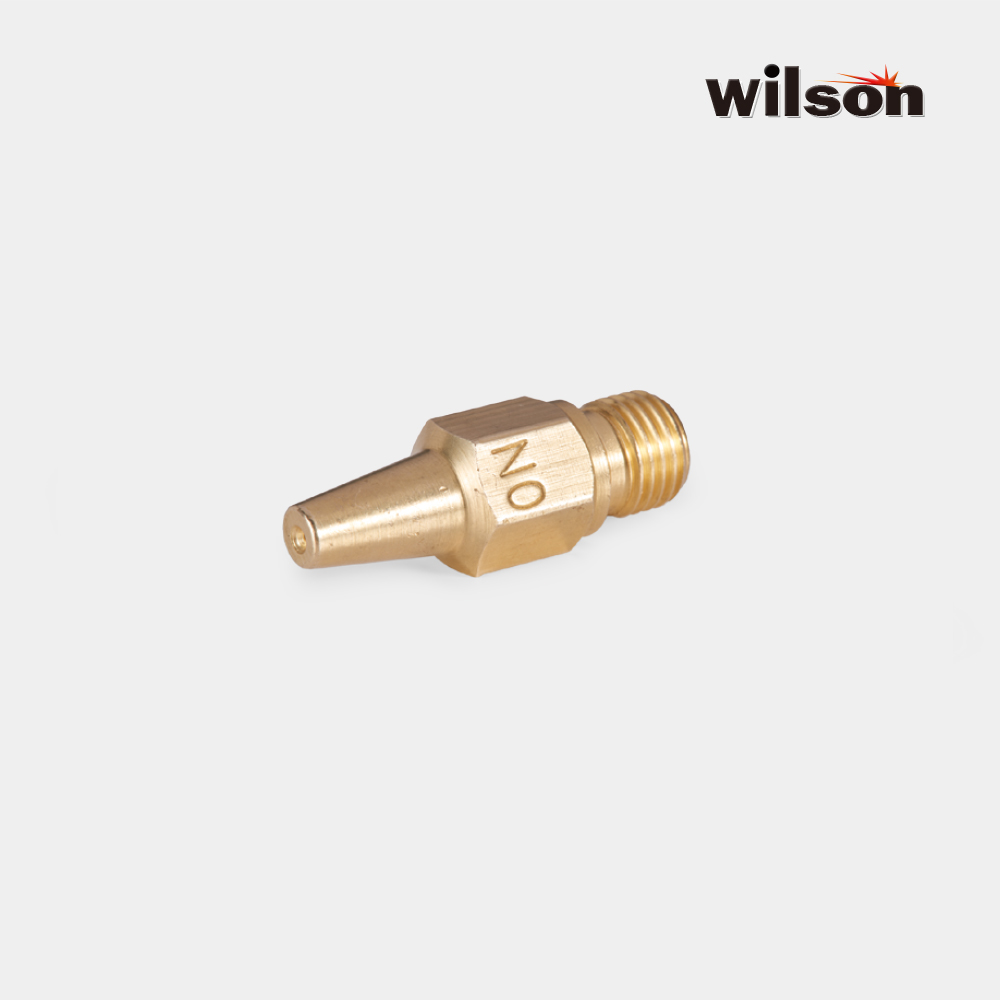

Wilson 1390-N Oxygen Acetylene Brazing Tip.

,

Previous
Next

Description

1390-*N

1390-N brazing tip for Oxy-Acetylene brazing.
Torch Handle: KH-63-2 & KH-43-2 series.
Mixer: E-43
Tip Tube: 2393

Specification

Tip NumberMaterial ThicknessLength (mm)
1390-00N 0.3 33
1390-0N 0.4 33
1390-1N 0.8 33
1390-2N 1.2 33
1390-3N 1.6 42
1390-4N 2.4 42
1390-5N 3.1 49
1390-6N 4.8 49
1390-7N 6.4 49
1390-8N 8.0 49
1390-9N 9.5 49
1390-10N 12.7 49
Tip NumberMaterial ThicknessLength (mm)
1390-00N 0.3 33
Tip NumberMaterial ThicknessLength (mm)
1390-0N 0.4 33
Tip NumberMaterial ThicknessLength (mm)
1390-1N 0.8 33
Tip NumberMaterial ThicknessLength (mm)
1390-2N 1.2 33
Tip NumberMaterial ThicknessLength (mm)
1390-3N 1.6 42
Tip NumberMaterial ThicknessLength (mm)
1390-4N 2.4 42
Tip NumberMaterial ThicknessLength (mm)
1390-5N 3.1 49
Tip NumberMaterial ThicknessLength (mm)
1390-6N 4.8 49
Tip NumberMaterial ThicknessLength (mm)
1390-7N 6.4 49
Tip NumberMaterial ThicknessLength (mm)
1390-8N 8.0 49
Tip NumberMaterial ThicknessLength (mm)
1390-9N 9.5 49
Tip NumberMaterial ThicknessLength (mm)
1390-10N 12.7 49
