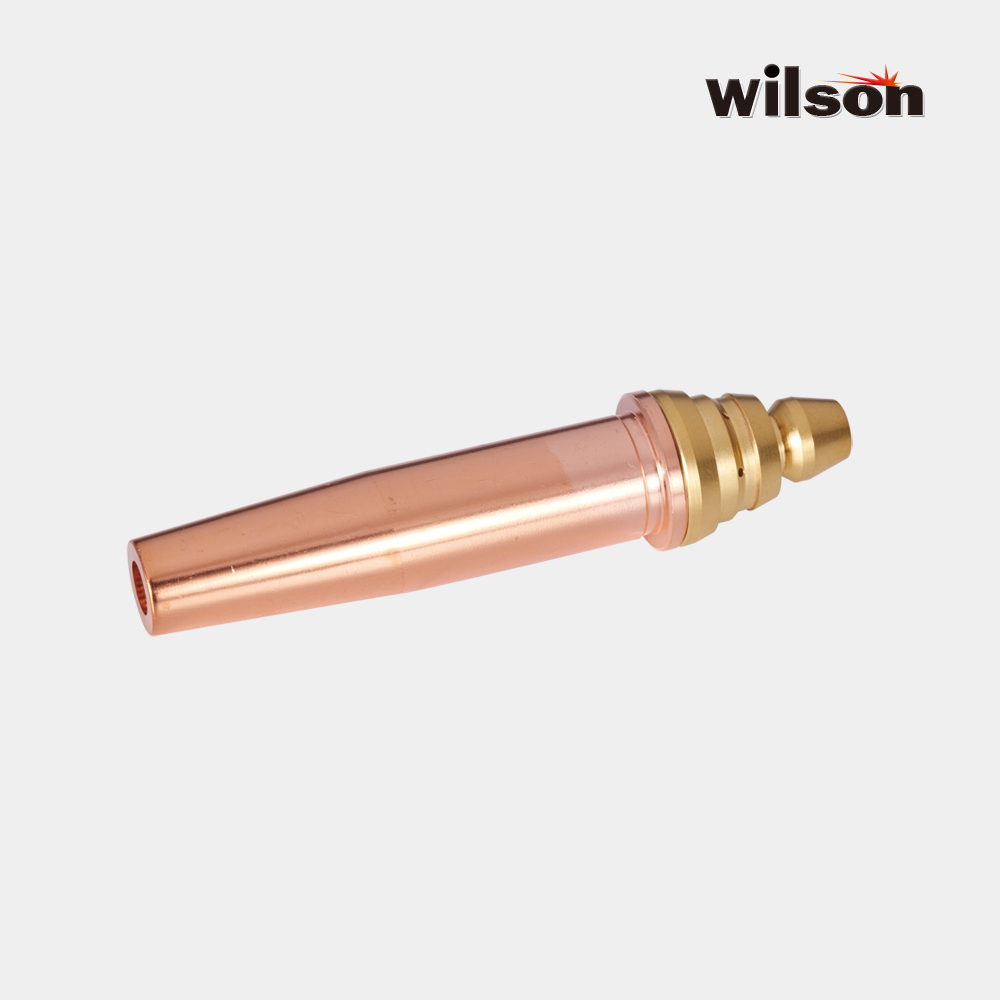

Wilson 275 Propane Cutting Tip

,

Previous
Next

Description

275-*

High quality Oxygen LPG cutting nozzle.
Universal type. Fits on KNM-250, KC-900A, and KH-142B.

Specification

Tip NumberCutting Thickness (mm)Orifice (mm)
164-00 1-3 0.8
164-0 3-6 0.9
164-1 6-10 1.0
164-2 10-20 1.2
164-3 20-40 1.6
164-4 40-60 1.9
164-5 60-100 2.2
164-6 100-150 2.5
164-7 150-200 2.7
164-8 200-250 3.2
164-9 250-300 3.4
164-10 300-350 3.6
