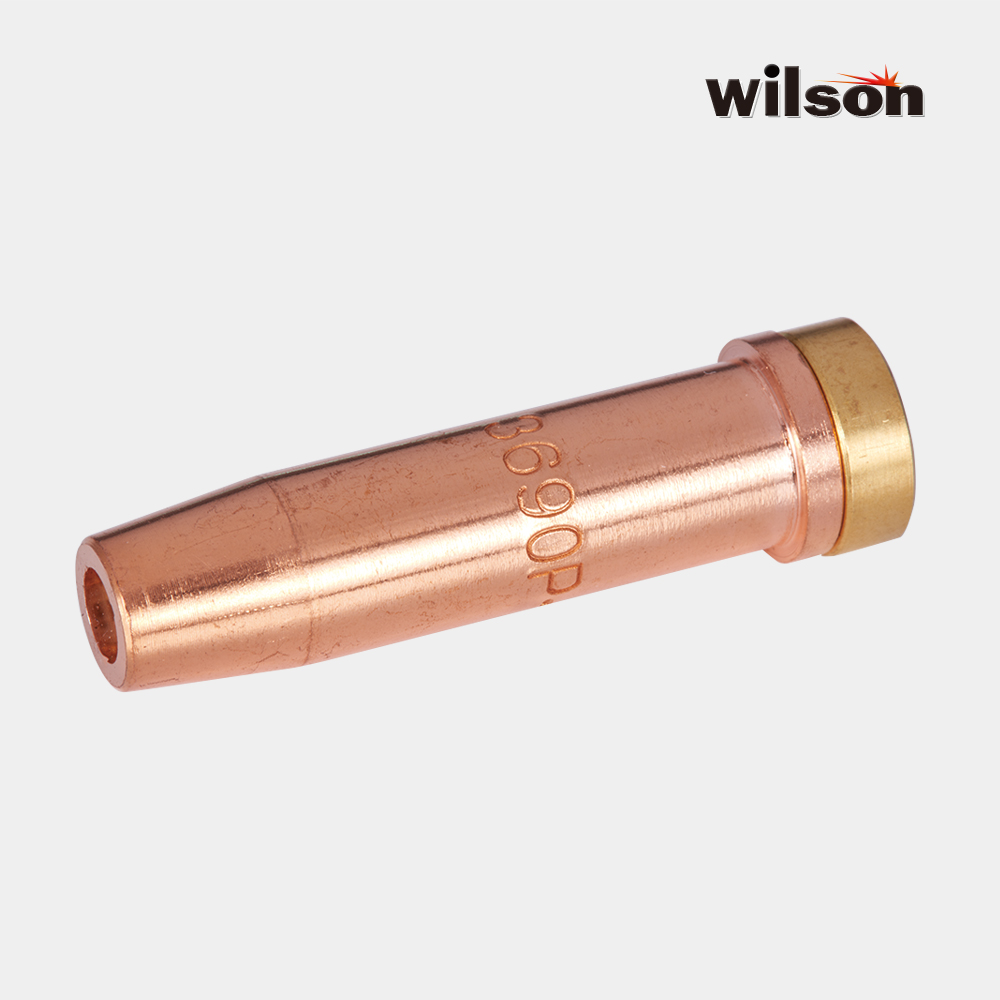

Wilson 3690-P Propane cutting Tip

,

Previous
Next

Description

3690-P

High quality cutting nozzle.
Oxygen LPG cutting.

Specification

Tip NumberCutting ThicknessOxy. Pressure (Bar)LPG. Pressure (Bar)Length (mm)
3690-00P 1 - 6 1.5 0.5 38
3690-0P 6-13 2.0 0.5 38
3690-1P 13-25 2.5 1.0 38
3690-2P 25-75 3.0 1.0 38
Tip NumberCutting ThicknessOxy. Pressure (Bar)LPG. Pressure (Bar)Length (mm)
3690-00P 1 - 6 1.5 0.5 38
Tip NumberCutting ThicknessOxy. Pressure (Bar)LPG. Pressure (Bar)Length (mm)
3690-0P 6-13 2.0 0.5 38
Tip NumberCutting ThicknessOxy. Pressure (Bar)LPG. Pressure (Bar)Length (mm)
3690-1P 13-25 2.5 1.0 38
Tip NumberCutting ThicknessOxy. Pressure (Bar)LPG. Pressure (Bar)Length (mm)
3690-2P 25-75 3.0 1.0 38
