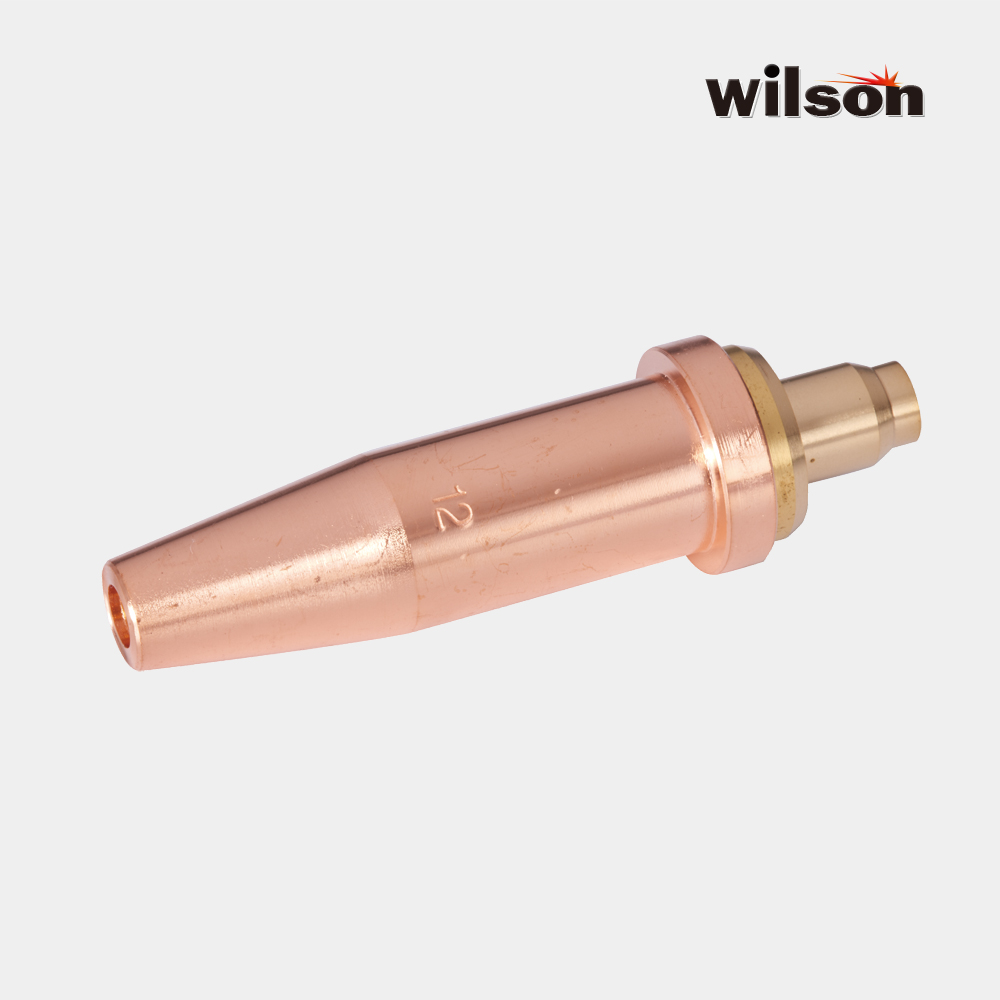

Wilson 44 Cutting Tip.

,

Previous
Next

Description

44-*

High quality cutting nozzle.
Propane Oxygen cutting.
Australian market oriented.

Specification

Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
44-6 1-5 1.5 0.5 73
44-8 5-10 1.5 0.5 73
44-10 10-20 2.0 1.0 73
44-12 20-50 2.5 1.0 73
44-15 50-80 2.5 1.0 73
44-20 80-100 3.0 1.5 73
44-24 100-150 3.5 1.5 73
44-32 150-200 4.0 1.5 73
