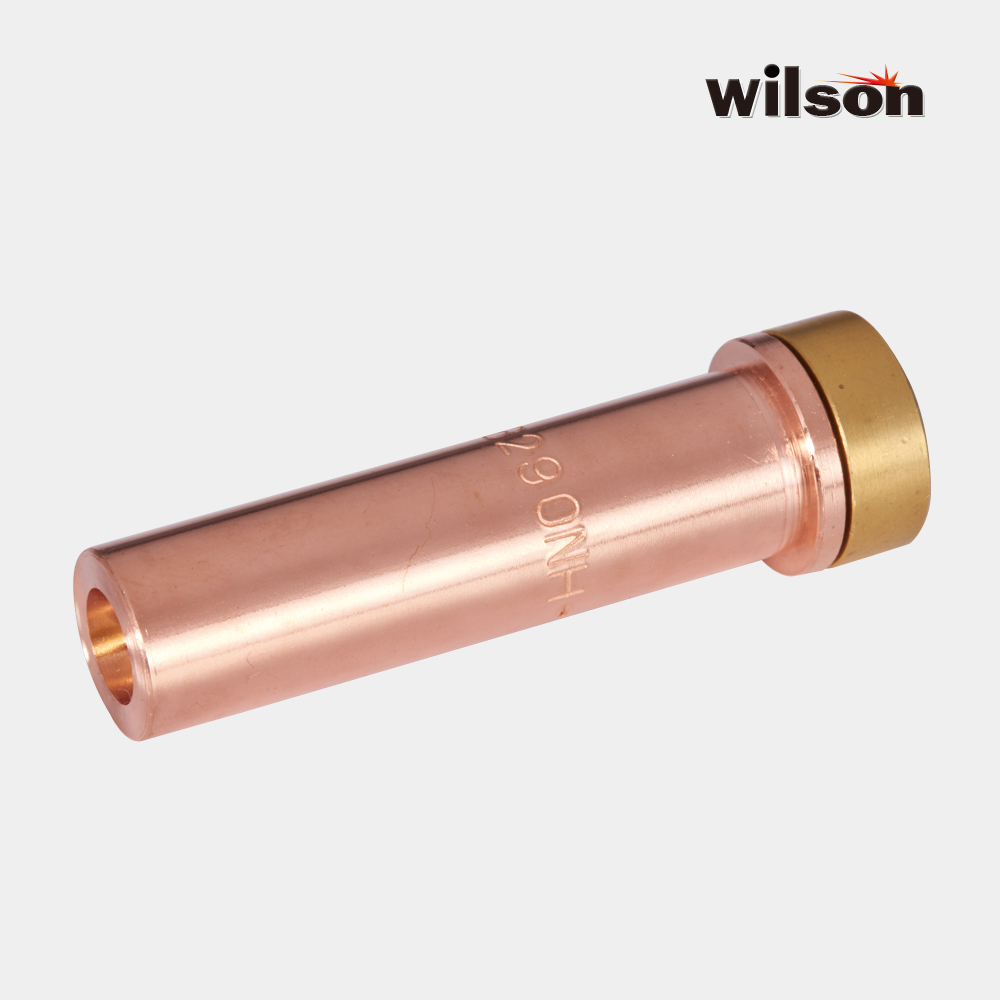

Wilson 6290-NH Cutting Tip.

,

Previous
Next

Description

6290-*NH

High quality cutting nozzle.
Propane Oxygen cutting.
European market oriented.

Specification

Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-5NH 225-250 4.0 0.015-0.2 38
6290-6NH 250-275 4.0 0.015-0.2 38
6290-7NH 275-300 4.0 0.015-0.2 38
6290-8NH 300-380 4.0 0.015-0.2 38
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-5NH 225-250 4.0 0.015-0.2 38
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-6NH 250-275 4.0 0.015-0.2 38
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-7NH 275-300 4.0 0.015-0.2 38
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-8NH 300-380 4.0 0.015-0.2 38
