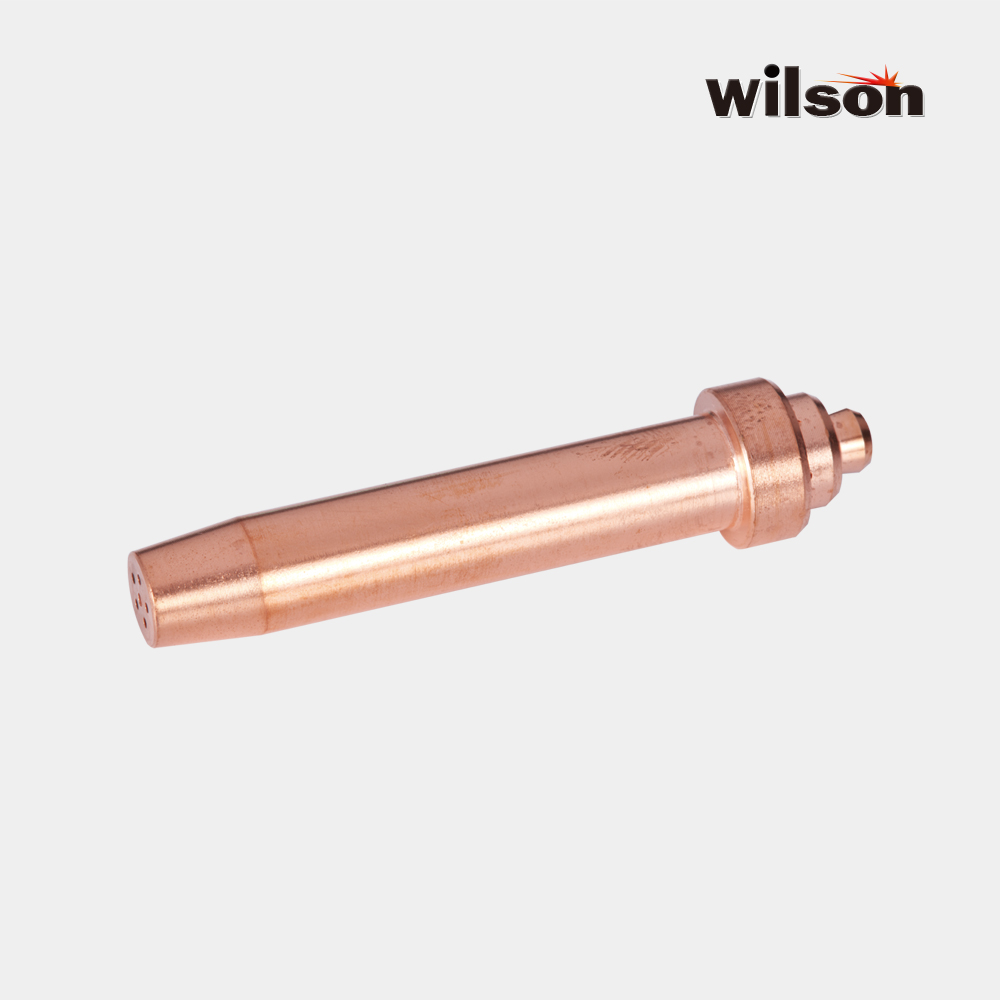

Wilson AFN Acetylene Cutting Tip

,

Previous
Next

Description

AFN-*

High quality cutting nozzle.
Oxygen Acetylene cutting.
South African market.

Specification

Tip NumberCutting ThicknessOxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
G1-P-7/10 3-10 3.0-5.0 0.5-1.0 86
G1-P-10/10 10-25 5.0-7.0 0.5-1.0 86
G1-P-12/10 25-50 5.0-7.0 0.5-1.0 86
Tip NumberCutting ThicknessOxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
G1-P-7/10 3-10 3.0-5.0 0.5-1.0 86
Tip NumberCutting ThicknessOxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
G1-P-10/10 10-25 5.0-7.0 0.5-1.0 86
Tip NumberCutting ThicknessOxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
G1-P-12/10 25-50 5.0-7.0 0.5-1.0 86
