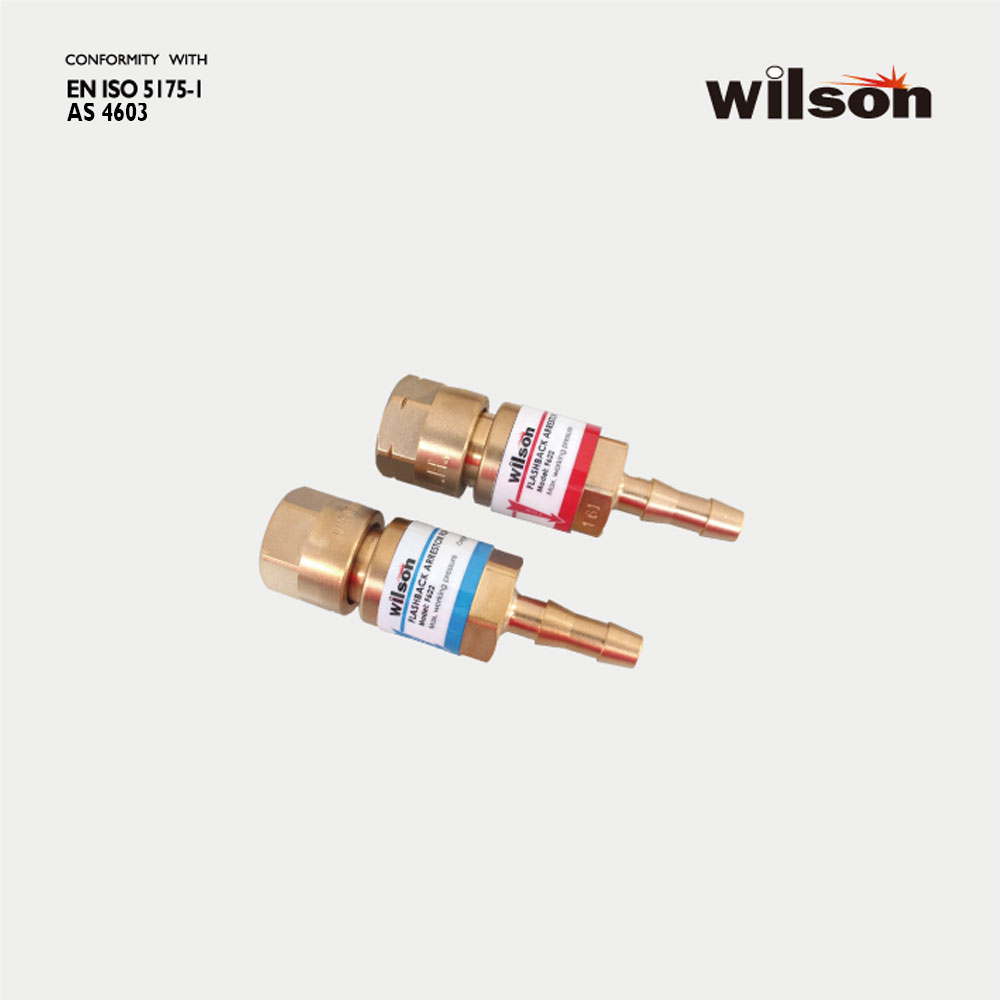

Wilson F622 Series Flashback Arrestors for Regulator. EN-ISO 5175-1.

,

Previous
Next

Description

F622-*

Two stage flashback arrestor with non-return valve design.
Max working pressure:
Oxygen - 145 PSIG
Acetylene - 15 PSIG
Other Fuel - 22 PSIG
Hose Dia:
6mm, 8mm, 3/16", 1/4", 3/8"

Specification

ModelGasMax Flow (m3/h)Inlet (female)
F612-9R Oxygen 40.5 9/16"*18 RH
F612-9L Fuel Gas 14.52 9/16"*18 LH
F612-3R Oxygen 40.5 BSP 3/8" RH
F612-3L Fuel Gas 14.52 BSP 3/8" LH
F612-5R Oxygen 40.5 5/8"*18 RH
F612-5L Fuel Gas 14.52 5/8"*18 LH
F612-1R Oxygen 40.5 BSP 1/4" RH
F612-1L Fuel Gas 14.52 BSP 1/4" LH
F612-16R Oxygen 40.5 M16*1.5 RH
F612-16L Fuel Gas 14.52 M16*1.5 LH
