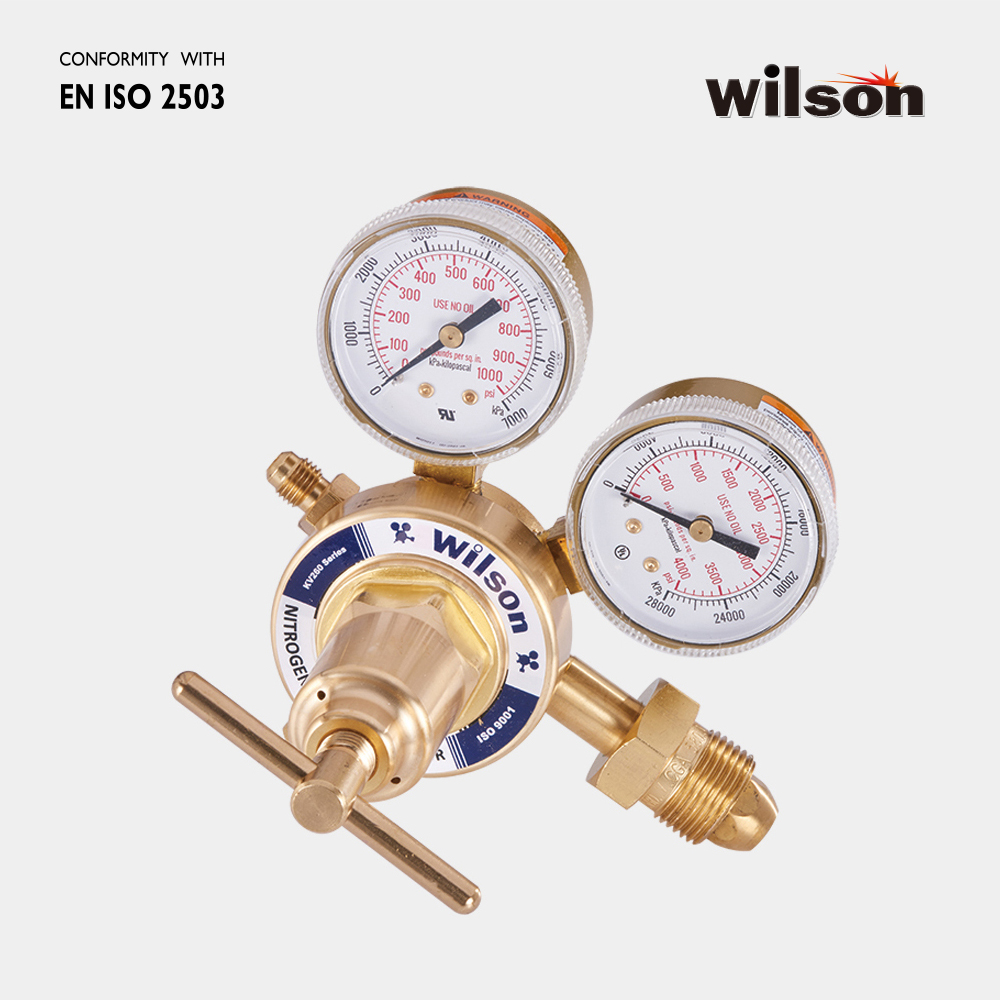

KV-260 High Pressure Regulator, Piston type. EN-ISO 2503.

,

Previous
Next

Description

KH-260

Wilson KH-260 High pressure regulator. Designed for wide range of flow capacity and pressure delivery. Ideal for applying on situations where 700 psi or 450 psi needed.
All model equipped with safety relieve valve.

Specification

ModelGasInlet Gauge RangeDelivery PressureWorking Pressure
KV-260-30M-OX Oxygen 315 bar/4500 psi 30 bar/450 psi 50 bar/700 psi
KV-260-30M-* Air/Argon/CO2/He/H2/N2 315 bar/4500 psi 30 bar/450 psi 50 bar/700 psi
KV-260-50M-OX Oxygen 315 bar/4500 psi 50 bar/700 psi 70 bar/1000 psi
KH-942-10M-* Air/Argon/CO2/He/H2/N2 315 bar/4500 psi 50 bar/700 psi 70 bar/1000 psi
ModelGasInlet Gauge RangeDelivery PressureWorking Pressure
KV-260-30M-OX Oxygen 315 bar/4500 psi 30 bar/450 psi 50 bar/700 psi
ModelGasInlet Gauge RangeDelivery PressureWorking Pressure
KV-260-30M-* Air/Argon/CO2/He/H2/N2 315 bar/4500 psi 30 bar/450 psi 50 bar/700 psi
ModelGasInlet Gauge RangeDelivery PressureWorking Pressure
KV-260-50M-OX Oxygen 315 bar/4500 psi 50 bar/700 psi 70 bar/1000 psi
ModelGasInlet Gauge RangeDelivery PressureWorking Pressure
KH-942-10M-* Air/Argon/CO2/He/H2/N2 315 bar/4500 psi 50 bar/700 psi 70 bar/1000 psi
