WT-304 High Pressure Regulator.

,

Previous
Next

Description

WT-304

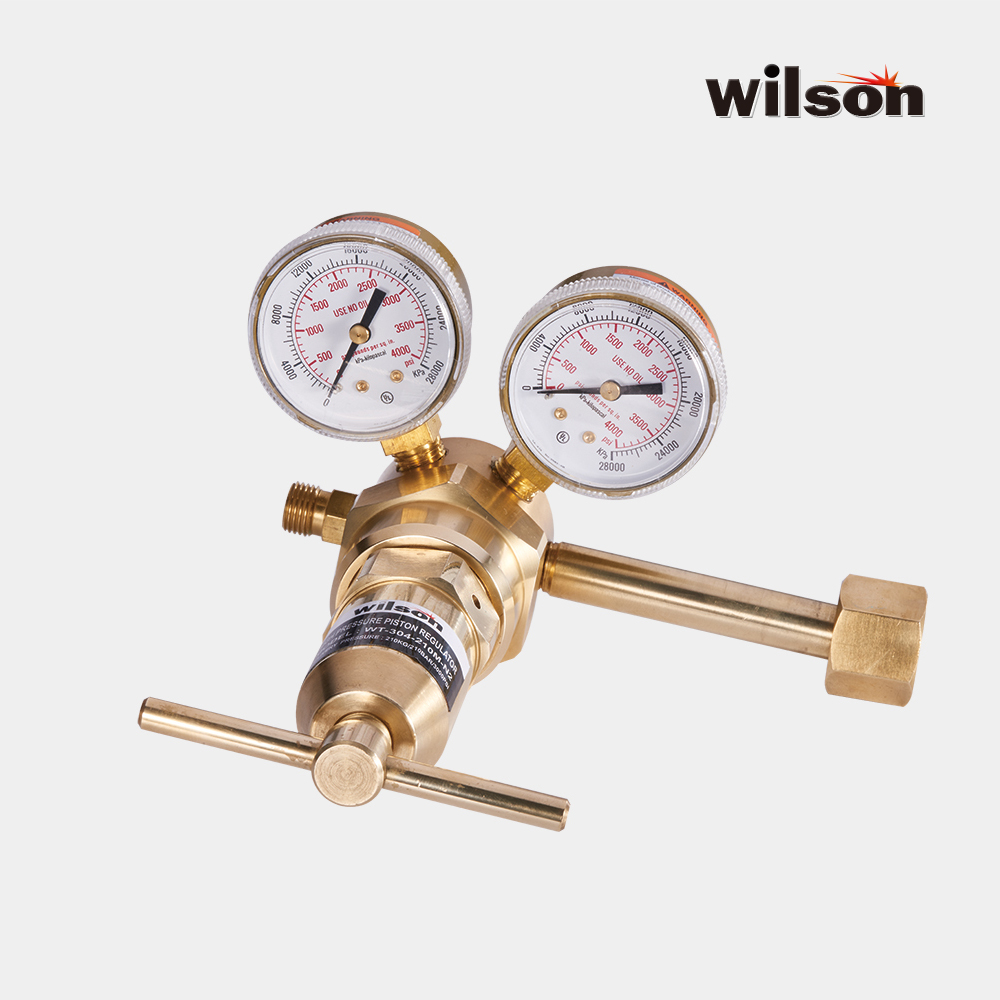

Wilson WT-304 piston type high pressure regulator. Designed for wide range of flow capacity and pressure delivery.
Delivery pressure up to 4500 psi.
All model equipped with safety relieve valve seat.

Specification

ModelGasInlet Gauge RangeDelivery PressureWorking Pressure
WT-304-70M-OX Oxygen 315 bar/4500 psi 70 bar/1000 psi 100 bar/1400 psi
WT-304-70M-* Air/Argon/CO2/He/H2/N2 315 bar/4500 psi 70 bar/1000 psi 100 bar/1400 psi
WT-304-100M-OX Oxygen 315 bar/4500 psi 100 bar/1400 psi 200 bar/2800 psi
WT-304-100M-* Air/Argon/CO2/He/H2/N2 315 bar/4500 psi 100 bar/1400 psi 200 bar/2800 psi
WT-304-210M-OX Oxygen 315 bar/4500 psi 210 bar/3000 psi 315 bar/4500 psi
WT-304-210M-* Air/Argon/CO2/He/H2/N2 315 bar/4500 psi 210 bar/3000 psi 315 bar/4500 psi
