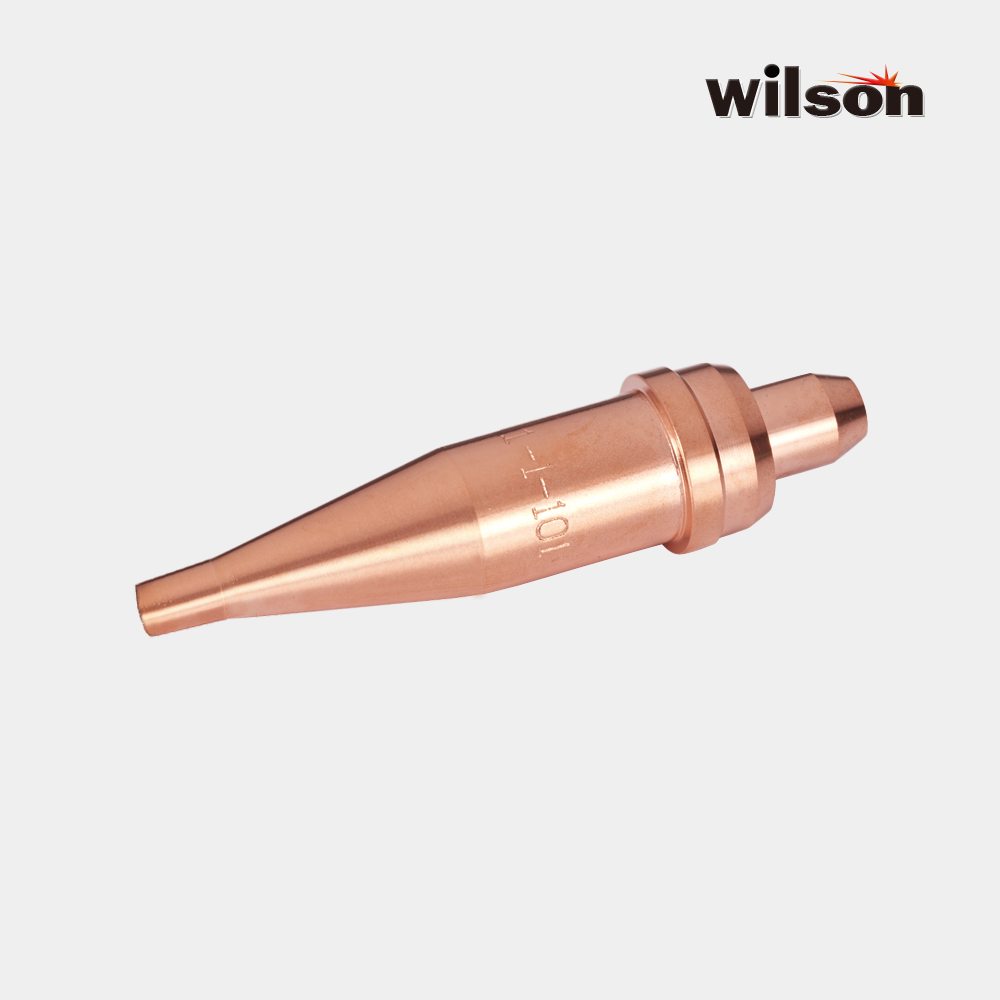

1-101 Cutting Nozzle – Oxygen Acetylene Heavy Duty

,

Kayo_1-101-Cutting-Tip-Acetylene_1219B
Kayo_1-101-Cutting-Tip-Acetylene_1219B
Previous
Next

Description

*-1-101

Oxy-Acetylene cutting tips for KV-2450 & KV2460 cutting attachment.
Size: 76mm.

Specification

Tip NumberCutting Thickness (mm)Orifice
000-1-101 1-3 0.7
00-1-101 3-6 0.8
0-1-101 6-10 1.0
1-1-101 10-20 1.2
2-1-101 20-40 1.5
3-1-101 40-60 1.8
4-1-101 60-80 2.1
5-1-101 80-125 2.5
6-1-101 125-200 3.1
7-1-101 200-250 3.6
8-1-101 250-300 4.1
Tip NumberCutting Thickness (mm)Orifice
000-1-101 1-3 0.7
Tip NumberCutting Thickness (mm)Orifice
00-1-101 3-6 0.8
Tip NumberCutting Thickness (mm)Orifice
0-1-101 6-10 1.0
Tip NumberCutting Thickness (mm)Orifice
1-1-101 10-20 1.2
Tip NumberCutting Thickness (mm)Orifice
2-1-101 20-40 1.5
Tip NumberCutting Thickness (mm)Orifice
3-1-101 40-60 1.8
Tip NumberCutting Thickness (mm)Orifice
4-1-101 60-80 2.1
Tip NumberCutting Thickness (mm)Orifice
5-1-101 80-125 2.5
Tip NumberCutting Thickness (mm)Orifice
6-1-101 125-200 3.1
Tip NumberCutting Thickness (mm)Orifice
7-1-101 200-250 3.6
Tip NumberCutting Thickness (mm)Orifice
8-1-101 250-300 4.1
