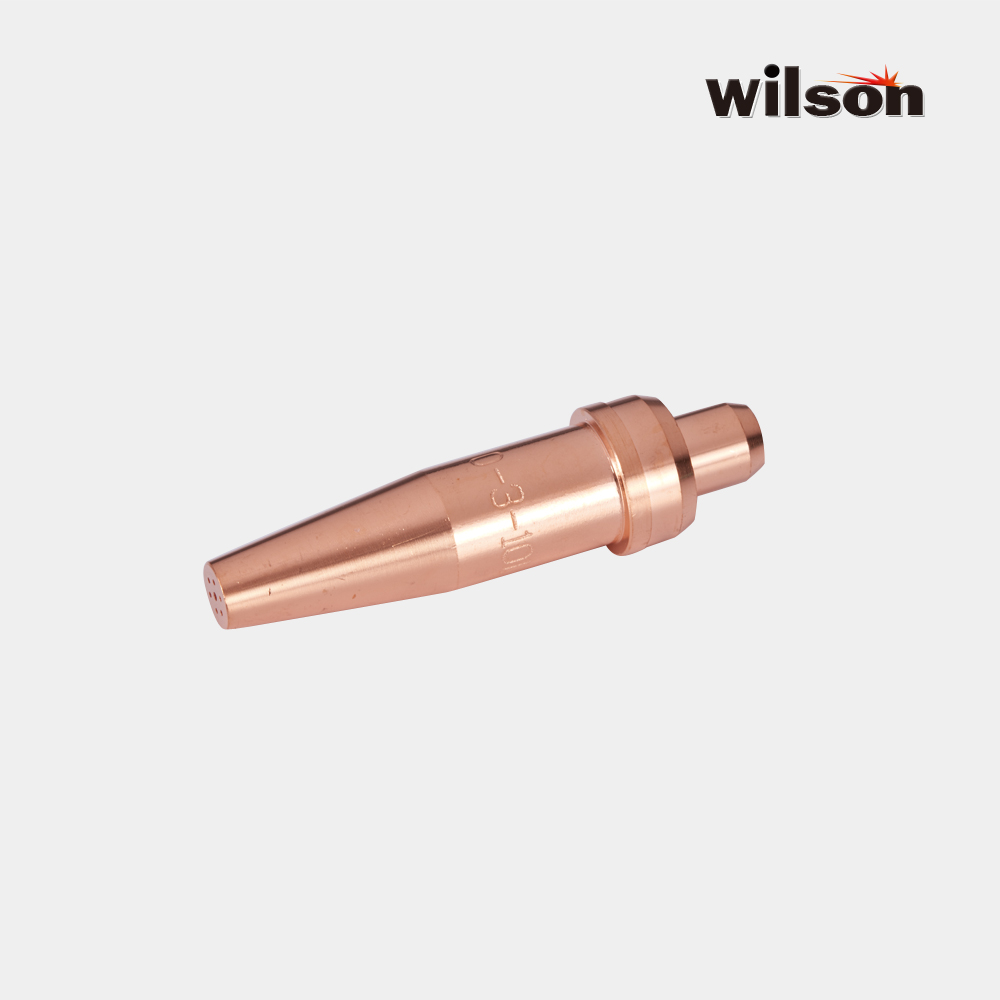

3-101 Cutting Nozzle – Oxygen Acetylene Medium Duty

,

Previous
Next

Description

*-3-101

Oxy-Acetylene cutting tips for KV-1350 cutting attachment.
Size: 59mm.

Specification

Tip NumberCutting Thickness (mm)Orifice
000-3-101 0-3 0.7
00-3-101 3-6 0.8
0-3-101 6-10 1.0
1-3-101 10-20 1.2
2-3-101 20-40 1.5
3-3-101 40-60 1.8
4-3-101 60-80 2.1
5-3-101 80-125 2.5
6-3-101 125-200 3.1
7-3-101 200-250 3.6
8-3-101 250-300 4.1
Tip NumberCutting Thickness (mm)Orifice
000-3-101 0-3 0.7
Tip NumberCutting Thickness (mm)Orifice
00-3-101 3-6 0.8
Tip NumberCutting Thickness (mm)Orifice
0-3-101 6-10 1.0
Tip NumberCutting Thickness (mm)Orifice
1-3-101 10-20 1.2
Tip NumberCutting Thickness (mm)Orifice
2-3-101 20-40 1.5
Tip NumberCutting Thickness (mm)Orifice
3-3-101 40-60 1.8
Tip NumberCutting Thickness (mm)Orifice
4-3-101 60-80 2.1
Tip NumberCutting Thickness (mm)Orifice
5-3-101 80-125 2.5
Tip NumberCutting Thickness (mm)Orifice
6-3-101 125-200 3.1
Tip NumberCutting Thickness (mm)Orifice
7-3-101 200-250 3.6
Tip NumberCutting Thickness (mm)Orifice
8-3-101 250-300 4.1
