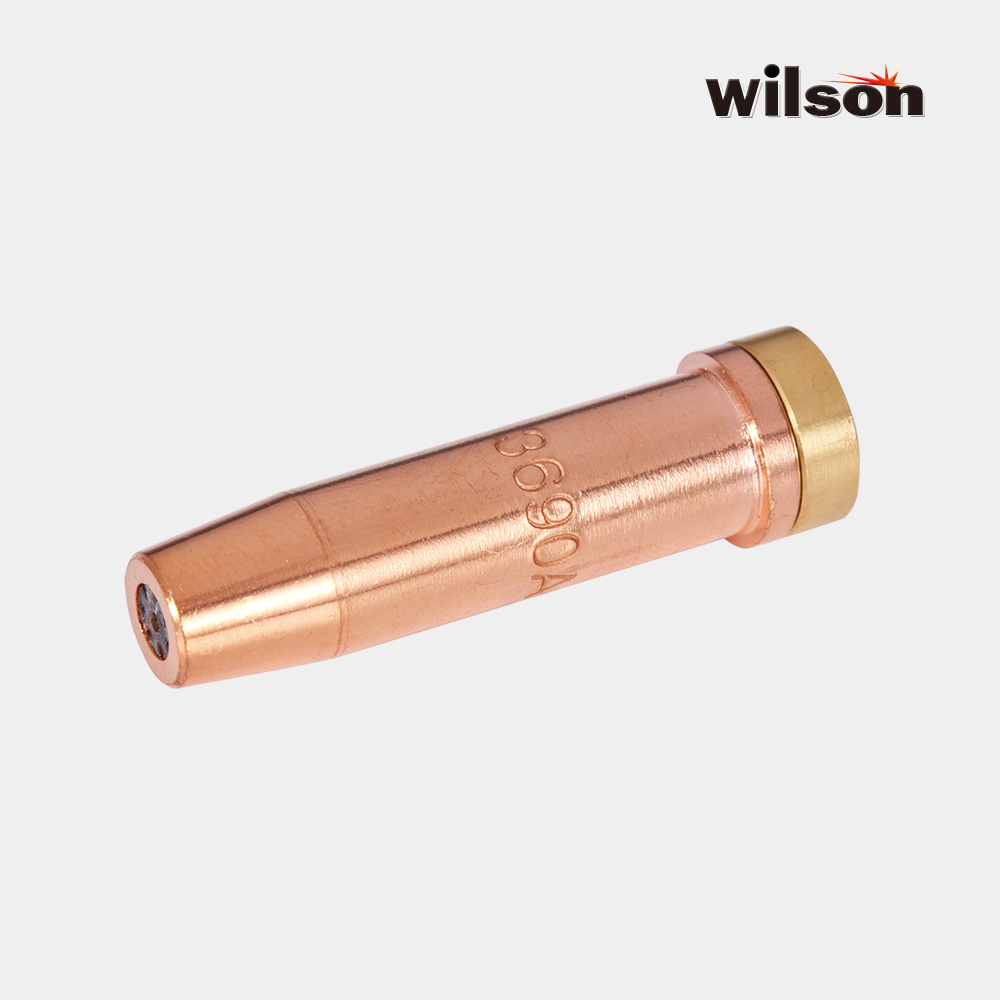

3690-AC Acetylene cutting Tip

,

Previous
Next

Description

3690-AC

High quality cutting nozzle.
Oxygen Acetylene cutting.

Specification

Tip NumberCutting ThicknessOxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
3690-00AC 1 - 6 1.5 0.5 38
3690-0AC 6-13 2.0 0.5 38
3690-1AC 13-25 2.5 1.0 38
3690-2AC 25-75 3.0 1.0 38
Tip NumberCutting ThicknessOxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
3690-00AC 1 - 6 1.5 0.5 38
Tip NumberCutting ThicknessOxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
3690-0AC 6-13 2.0 0.5 38
Tip NumberCutting ThicknessOxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
3690-1AC 13-25 2.5 1.0 38
Tip NumberCutting ThicknessOxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
3690-2AC 25-75 3.0 1.0 38
