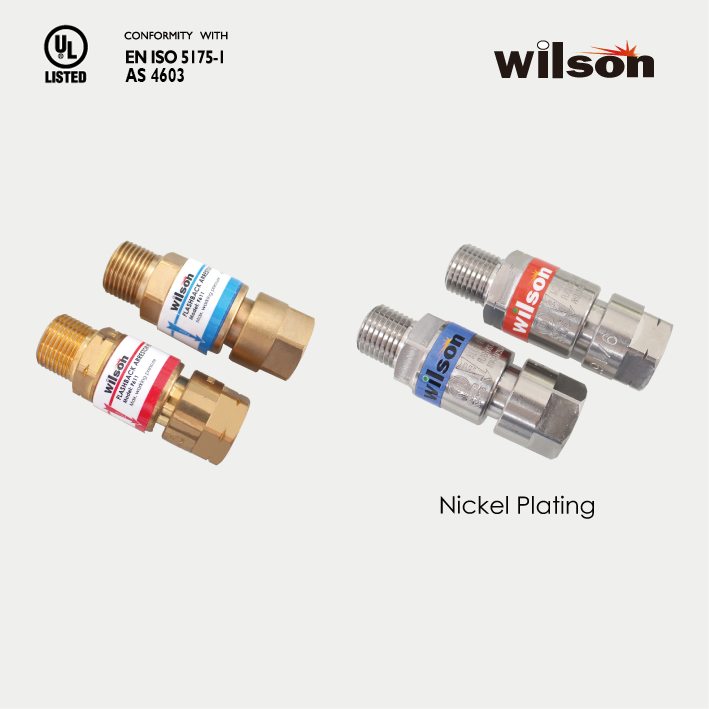

Wilson F611 Series Flashback Arrestors for Torch Handle. UL Listed. EN-ISO 5175-1 & AS 4603.

,

Wilson F611 Series Flashback Arrestors for Torch Handle. UL Listed. EN-ISO 5175-1 & AS 4603.
Wilson F611 Series Flashback Arrestors for Torch Handle. UL Listed. EN-ISO 5175-1 & AS 4603.
Previous
Next

Description

F611-*

．Function: DF/FA/NV
  ╴ DF(Dust Filter)
  ╴ FA(Flame Arrestor)
  ╴ NV(Non-return Valve)
．Size: Φ21.3×L60mm
．Maximum working pressure for UL:
  ╴ Oxygen: 145Psi (10Bar)
  ╴ Acetylene: 15Psi (1Bar)
  ╴ MPS Gas: 22Psi (1.5Bar)
  ╴ LP Gas, Hydrogen, Methane, Natural Gas: 50Psi (3.5Bar)
．Maximum working pressure for AS 4603 & EN ISO 5175-1:
  ╴ Oxygen: 360Psi (25Bar)
  ╴ Acetylene / MPS Gas: 22Psi (1.5Bar)
  ╴ Hydrogen Gas: 50Psi (3.5Bar)
  ╴ LP-Gas, Methane, Natural Gas: 72.5Psi (5.0Bar)

Specification

ModelGasMax Flow (m3/h)Inlet (male)Outlet (female)
F611-9R Oxygen 40.5 9/16"*18 RH 9/16"*18 RH
F611-9L Fuel Gas 14.52 9/16"*18 LH 9/16"*18 LH
F611-3R Oxygen 40.5 G 3/8 RH G 3/8 RH
F611-3L Fuel Gas 14.52 G 3/8 LH G 3/8 LH
F611-5R Oxygen 40.5 5/8"*18 RH 5/8"*18 RH
F611-5L Fuel Gas 14.52 5/8"*18 LH 5/8"*18 LH
F611-1R Oxygen 40.5 G 1/4 RH G 1/4 RH
F611-1L Fuel Gas 14.52 G 1/4 LH G 1/4 LH
F611-16R Oxygen 40.5 M16*1.5 RH M16*1.5 RH
F611-16L Fuel Gas 14.52 M16*1.5 LH M16*1.5 LH
ModelGasMax Flow (m3/h)Inlet (male)Outlet (female)
F611-9R Oxygen 40.5 9/16"*18 RH 9/16"*18 RH
ModelGasMax Flow (m3/h)Inlet (male)Outlet (female)
F611-9L Fuel Gas 14.52 9/16"*18 LH 9/16"*18 LH
ModelGasMax Flow (m3/h)Inlet (male)Outlet (female)
F611-3R Oxygen 40.5 G 3/8 RH G 3/8 RH
ModelGasMax Flow (m3/h)Inlet (male)Outlet (female)
F611-3L Fuel Gas 14.52 G 3/8 LH G 3/8 LH
ModelGasMax Flow (m3/h)Inlet (male)Outlet (female)
F611-5R Oxygen 40.5 5/8"*18 RH 5/8"*18 RH
ModelGasMax Flow (m3/h)Inlet (male)Outlet (female)
F611-5L Fuel Gas 14.52 5/8"*18 LH 5/8"*18 LH
ModelGasMax Flow (m3/h)Inlet (male)Outlet (female)
F611-1R Oxygen 40.5 G 1/4 RH G 1/4 RH
ModelGasMax Flow (m3/h)Inlet (male)Outlet (female)
F611-1L Fuel Gas 14.52 G 1/4 LH G 1/4 LH
ModelGasMax Flow (m3/h)Inlet (male)Outlet (female)
F611-16R Oxygen 40.5 M16*1.5 RH M16*1.5 RH
ModelGasMax Flow (m3/h)Inlet (male)Outlet (female)
F611-16L Fuel Gas 14.52 M16*1.5 LH M16*1.5 LH
