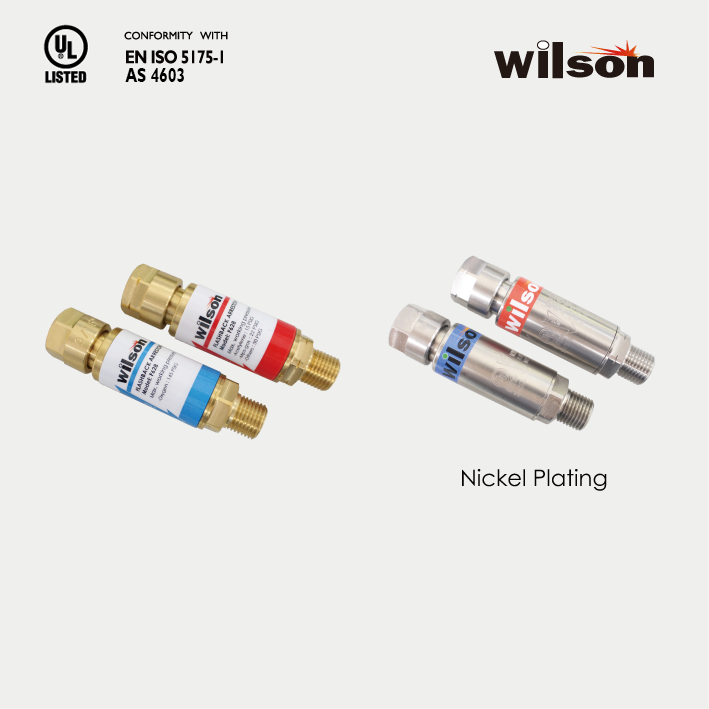

Wilson F628 Series Flashback Arrestors for Regulator. UL Listed. EN-ISO 5175-1 & AS 4603.

,

Wilson F628 Series Flashback Arrestors for Regulator. UL Listed. EN-ISO 5175-1 & AS 4603.
Wilson F628 Series Flashback Arrestors for Regulator. UL Listed. EN-ISO 5175-1 & AS 4603.
Previous
Next

Description

F628-*

．Function: DF/FA/NV
  ╴ DF(Dust Filter)
  ╴ FA(Flame Arrestor)
  ╴ NV(Non-return Valve)
．Size: Φ22.2×L86mm
．Maximum working pressure for UL:
  ╴ Oxygen: 145Psi (10Bar)
  ╴ Acetylene: 15Psi (1Bar)
  ╴ MPS Gas: 22Psi (1.5Bar)
  ╴ LP Gas, Hydrogen, Methane, Natural Gas: 50Psi (3.5Bar)
．Maximum working pressure for AS 4603 & EN ISO 5175-1:
  ╴ Oxygen: 360Psi (25Bar)
  ╴ Acetylene / MPS Gas: 22Psi (1.5Bar)
  ╴ Hydrogen Gas: 50Psi (3.5Bar)
  ╴ LP-Gas, Methane, Natural Gas: 72.5Psi (5.0Bar)

Specification

ModelGasMax Flow (m3/h)Inlet (female)Outlet (male)
F628-9R Oxygen 49.2 9/16"*18 RH 9/16"*18 RH
F628-9L Fuel Gas 19.02 9/16"*18 LH 9/16"*18 LH
F628-3R Oxygen 49.2 G 3/8 RH G 3/8 RH
F628-3L Fuel Gas 19.02 G 3/8 LH G 3/8 LH
F628-5R Oxygen 49.2 5/8"*18 RH 5/8"*18 RH
F628-5L Fuel Gas 19.02 5/8"*18 LH 5/8"*18 LH
F628-1R Oxygen 49.2 G 1/4 RH G 1/4 RH
F628-1L Fuel Gas 19.02 G 1/4 LH G 1/4 LH
F628-16R Oxygen 49.2 M16*1.5 RH M16*1.5 RH
F628-16L Fuel Gas 19.02 M16*1.5 LH M16*1.5 LH
ModelGasMax Flow (m3/h)Inlet (female)Outlet (male)
F628-9R Oxygen 49.2 9/16"*18 RH 9/16"*18 RH
ModelGasMax Flow (m3/h)Inlet (female)Outlet (male)
F628-9L Fuel Gas 19.02 9/16"*18 LH 9/16"*18 LH
ModelGasMax Flow (m3/h)Inlet (female)Outlet (male)
F628-3R Oxygen 49.2 G 3/8 RH G 3/8 RH
ModelGasMax Flow (m3/h)Inlet (female)Outlet (male)
F628-3L Fuel Gas 19.02 G 3/8 LH G 3/8 LH
ModelGasMax Flow (m3/h)Inlet (female)Outlet (male)
F628-5R Oxygen 49.2 5/8"*18 RH 5/8"*18 RH
ModelGasMax Flow (m3/h)Inlet (female)Outlet (male)
F628-5L Fuel Gas 19.02 5/8"*18 LH 5/8"*18 LH
ModelGasMax Flow (m3/h)Inlet (female)Outlet (male)
F628-1R Oxygen 49.2 G 1/4 RH G 1/4 RH
ModelGasMax Flow (m3/h)Inlet (female)Outlet (male)
F628-1L Fuel Gas 19.02 G 1/4 LH G 1/4 LH
ModelGasMax Flow (m3/h)Inlet (female)Outlet (male)
F628-16R Oxygen 49.2 M16*1.5 RH M16*1.5 RH
ModelGasMax Flow (m3/h)Inlet (female)Outlet (male)
F628-16L Fuel Gas 19.02 M16*1.5 LH M16*1.5 LH
