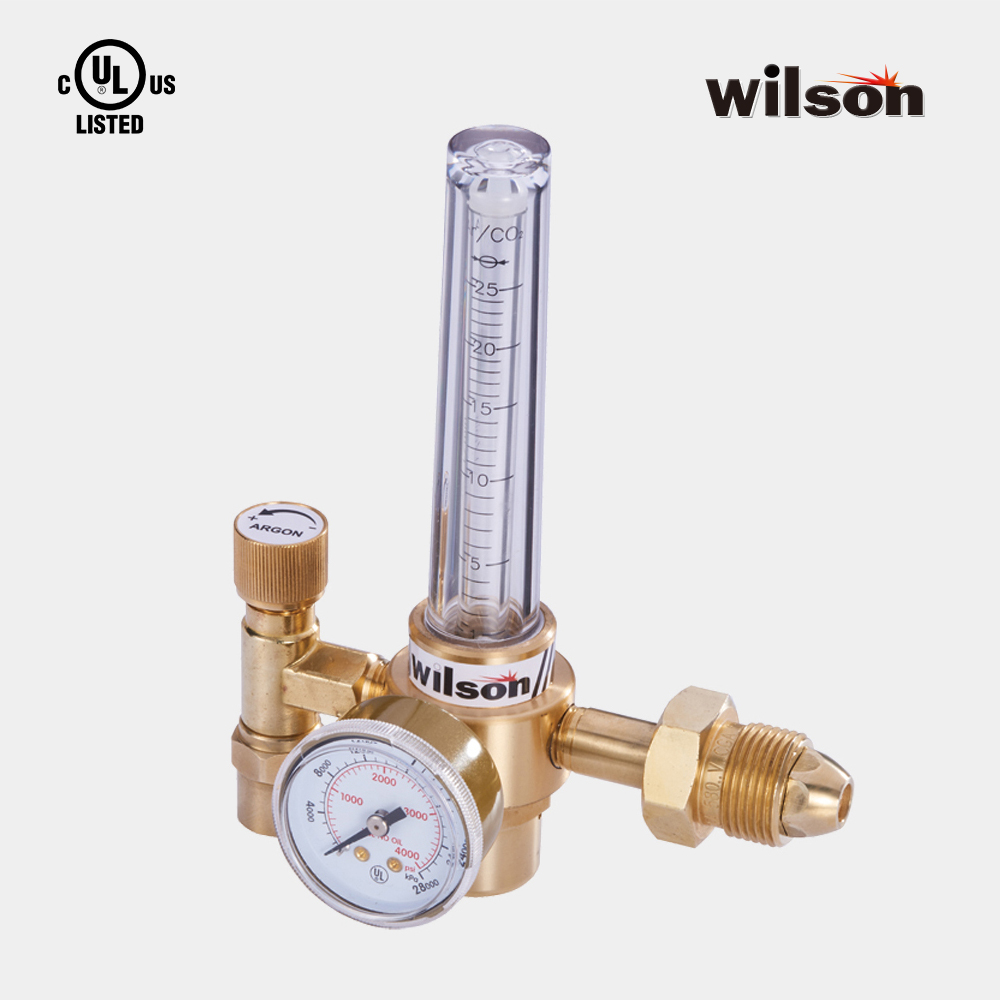

FM1400 Flowmeter Regulator. UL Listed.

,

Previous
Next

Description

FM1400

‧Wilson FM1400 is suitable for light to medium duty TIG/MIG/MAG welding.

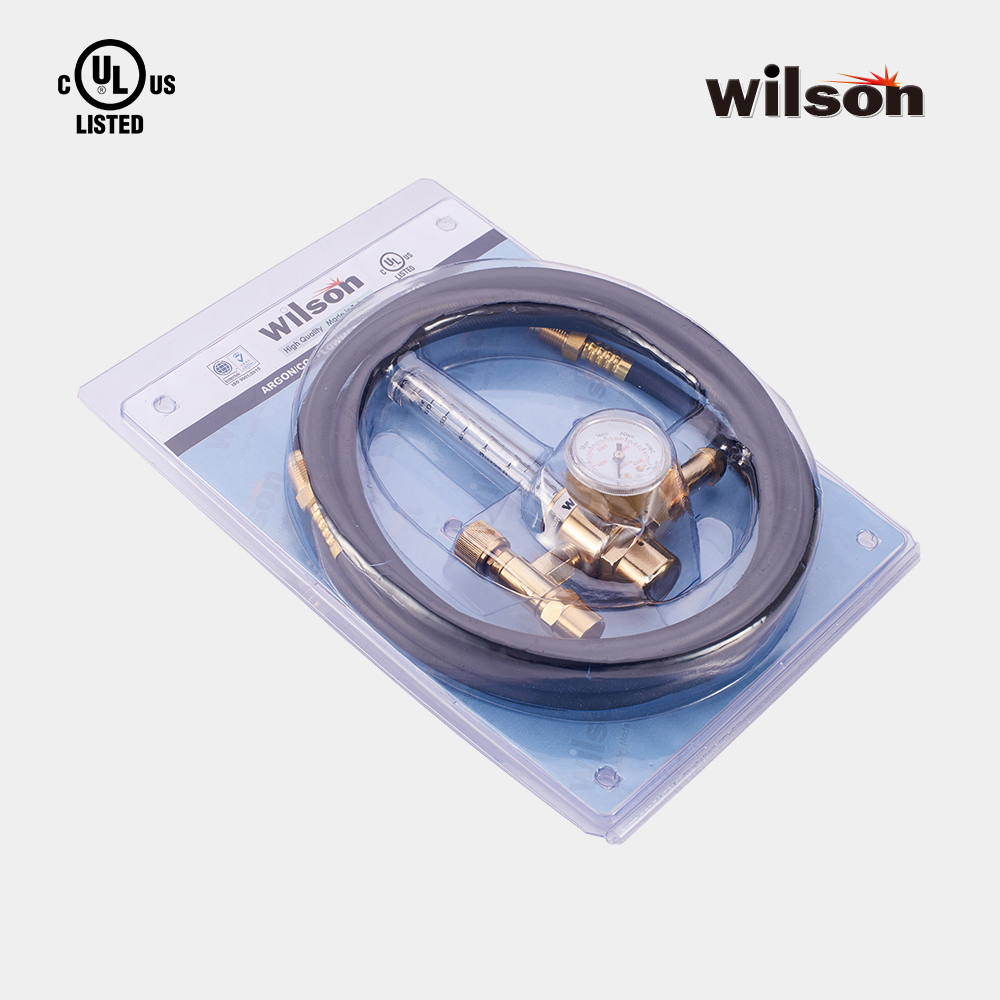

‧RH model includes 3M long hose with fittings.
‧Piston type constructure, combines body and flowmeter in one unit.
‧Outlet pressure 50PSI.
‧Optional for kit with 3/16"x10M hose.
‧1.5" gauge

Specification

ModelGasMax. Inlet PressureOutlet FlowmeterHose
FM1400-25FL-* Argon/CO2 3000psi 25LPM N/A
FM1400-60CF-* Argon/CO2 3000psi 60SCFH N/A
FM1400RH-25FL-* Argon/CO2 3000psi 25LPM 3M Hose
FM1400RH-60CF-* Argon/CO2 3000psi 25LPM 3M Hose
ModelGasMax. Inlet PressureOutlet FlowmeterHose
FM1400-25FL-* Argon/CO2 3000psi 25LPM N/A
ModelGasMax. Inlet PressureOutlet FlowmeterHose
FM1400-60CF-* Argon/CO2 3000psi 60SCFH N/A
ModelGasMax. Inlet PressureOutlet FlowmeterHose
FM1400RH-25FL-* Argon/CO2 3000psi 25LPM 3M Hose
ModelGasMax. Inlet PressureOutlet FlowmeterHose
FM1400RH-60CF-* Argon/CO2 3000psi 25LPM 3M Hose
