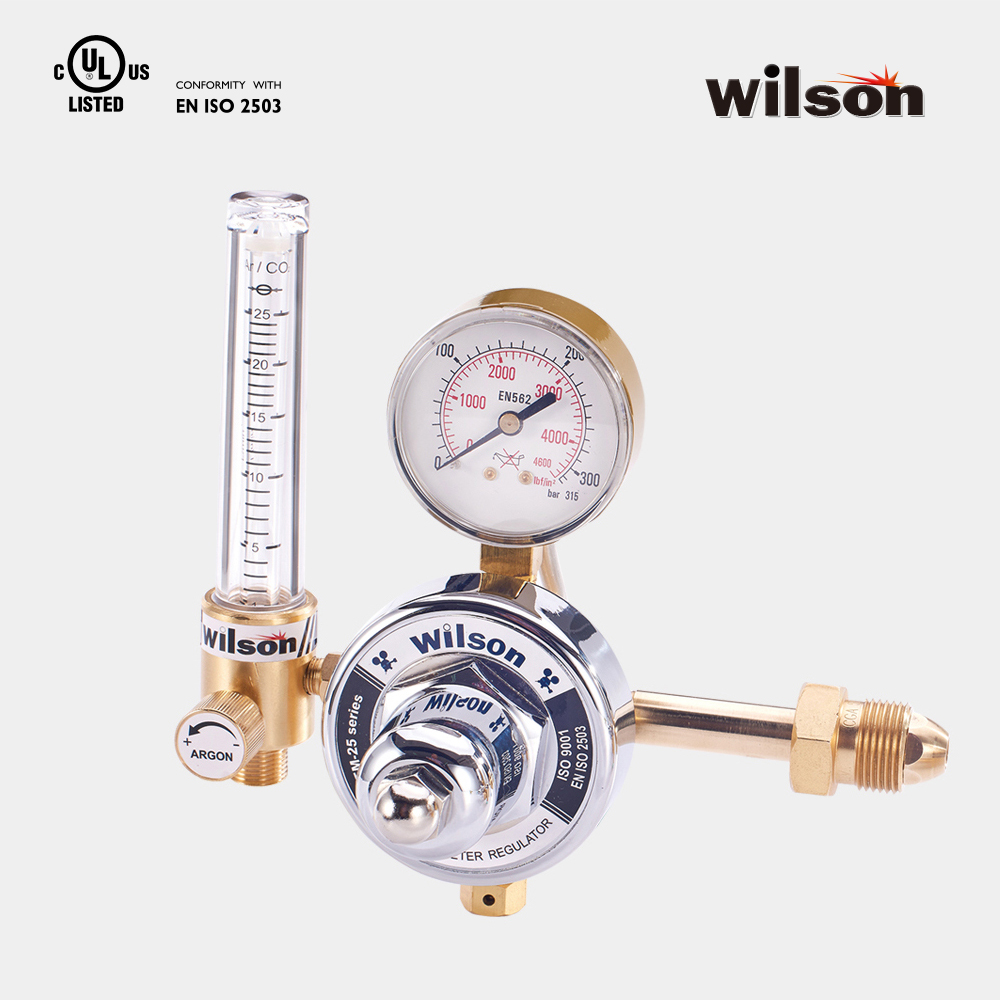

FM25 Flowmeter Regulator. Heavy Duty. UL Listed. EN-ISO 2503.
Previous
Next
Description
FM25
‧Wilson FM25 provides stable gas flow and pressure with one-piece encapsulated HD valve.
‧With KH25 series body and bonnet
‧Flowmeter with polycarbonate tube transparent with 360° visibility.
‧Outlet pressure preset at 3.5 bar(50psi)
‧2.5" gauge
Specification
| Model | Gas | Max. Inlet Pressure | Outlet Flowmeter |
|---|---|---|---|
| FM25-15FL-* | Argon/CO2 | 200bar/3000psi | 15LPM |
| FM25-25FL-* | Argon/CO2 | 200bar/3000psi | 25LPM |
| FM25-60CF-* | Argon/CO2 | 200bar/3000psi | 60SCFH |
| FM25-70CF-* | Argon/CO2 | 200bar/3000psi | 70SCFH |
| FM25-30FL-* | Nitrogen | 200bar/3000psi | 30LPM |
ModelGasMax. Inlet PressureOutlet Flowmeter
FM25-15FL-*
Argon/CO2
200bar/3000psi
15LPM
ModelGasMax. Inlet PressureOutlet Flowmeter
FM25-25FL-*
Argon/CO2
200bar/3000psi
25LPM
ModelGasMax. Inlet PressureOutlet Flowmeter
FM25-60CF-*
Argon/CO2
200bar/3000psi
60SCFH
ModelGasMax. Inlet PressureOutlet Flowmeter
FM25-70CF-*
Argon/CO2
200bar/3000psi
70SCFH
ModelGasMax. Inlet PressureOutlet Flowmeter
FM25-30FL-*
Nitrogen
200bar/3000psi
30LPM
