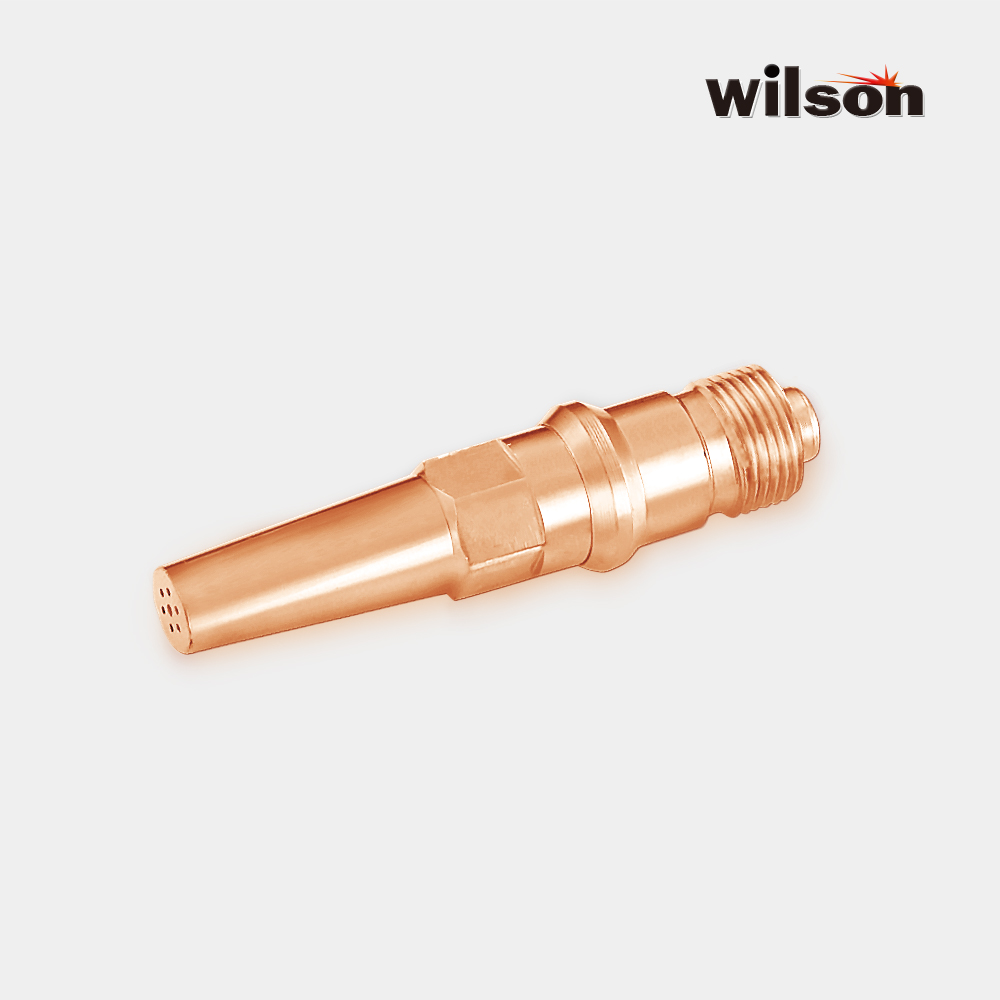

2890-F Acetylene Cutting Tip

,

Previous
Next

Description

2890-F

High quality cutting nozzle.
Oxygen Acetylene cutting.

Specification

Tip NumberCutting ThicknessOxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
2890-1F 0-10 1.0-1.5 0.2 78
2890-2F 10-50 1.5-2.5 0.3 78
2890-3F 50-100 3.0-4.5 0.5 78
2890-4F 100-125 5.0-5.5 0.7 78
2890-5F 125-150 5.5-6.0 0.7 78
2890-6F 150-200 6.0-6.5 0.7 78
Tip NumberCutting ThicknessOxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
2890-1F 0-10 1.0-1.5 0.2 78
Tip NumberCutting ThicknessOxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
2890-2F 10-50 1.5-2.5 0.3 78
Tip NumberCutting ThicknessOxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
2890-3F 50-100 3.0-4.5 0.5 78
Tip NumberCutting ThicknessOxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
2890-4F 100-125 5.0-5.5 0.7 78
Tip NumberCutting ThicknessOxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
2890-5F 125-150 5.5-6.0 0.7 78
Tip NumberCutting ThicknessOxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
2890-6F 150-200 6.0-6.5 0.7 78
