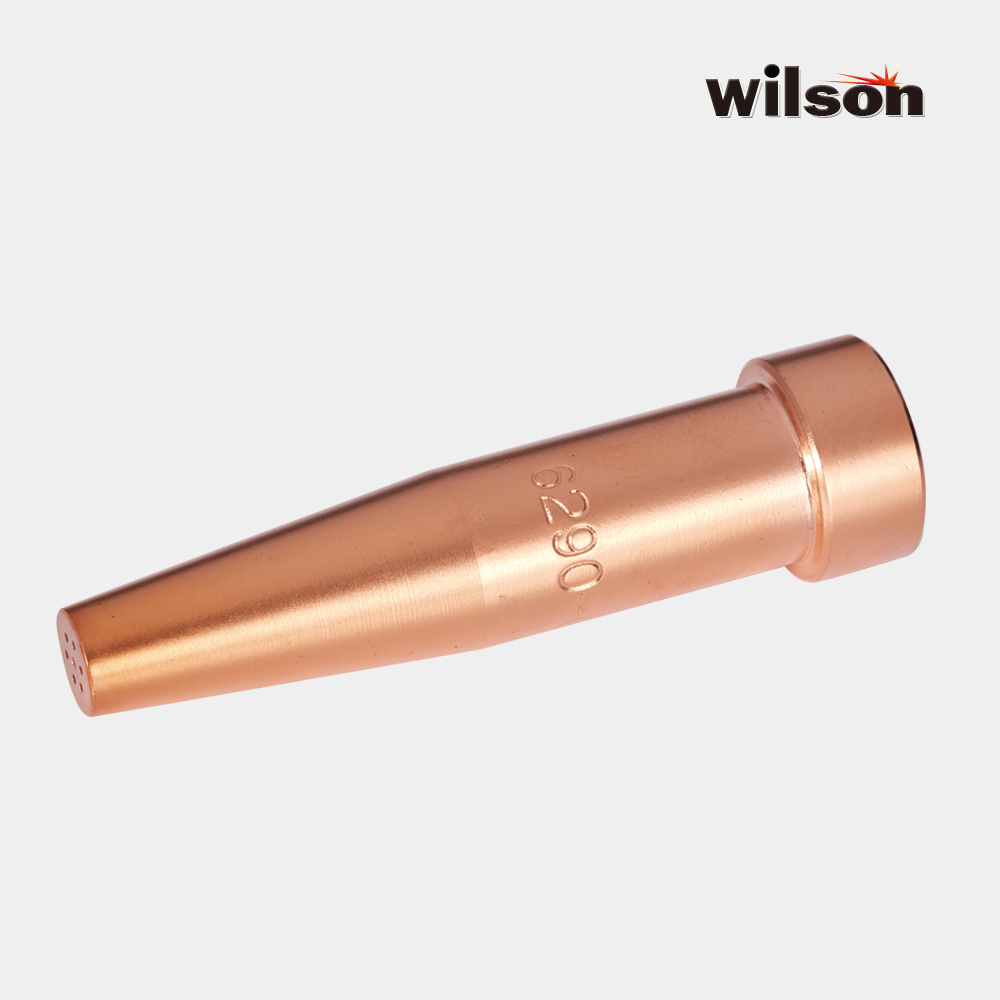

6290 Cutting Tip.

,

Previous
Next

Description

6290-*

High quality cutting nozzle.
Acetylene Oxygen cutting.
European market oriented.

Specification

Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
6290-000 1-5 1.5 0.5 61
6290-00 5-10 1.5 0.5 61
6290-0 10-15 2.0 1.0 61
6290-1 15-25 2.5 1.0 61
6290-2 25-50 3.0 1.0 61
6290-3 50-100 3.5 1.0 61
6290-4 100-175 4.0 1.5 61
6290-5 175-250 5.0 1.5 61
6290-6 250-300 6.0 1.5 61
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
6290-000 1-5 1.5 0.5 61
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
6290-00 5-10 1.5 0.5 61
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
6290-0 10-15 2.0 1.0 61
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
6290-1 15-25 2.5 1.0 61
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
6290-2 25-50 3.0 1.0 61
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
6290-3 50-100 3.5 1.0 61
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
6290-4 100-175 4.0 1.5 61
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
6290-5 175-250 5.0 1.5 61
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
6290-6 250-300 6.0 1.5 61
