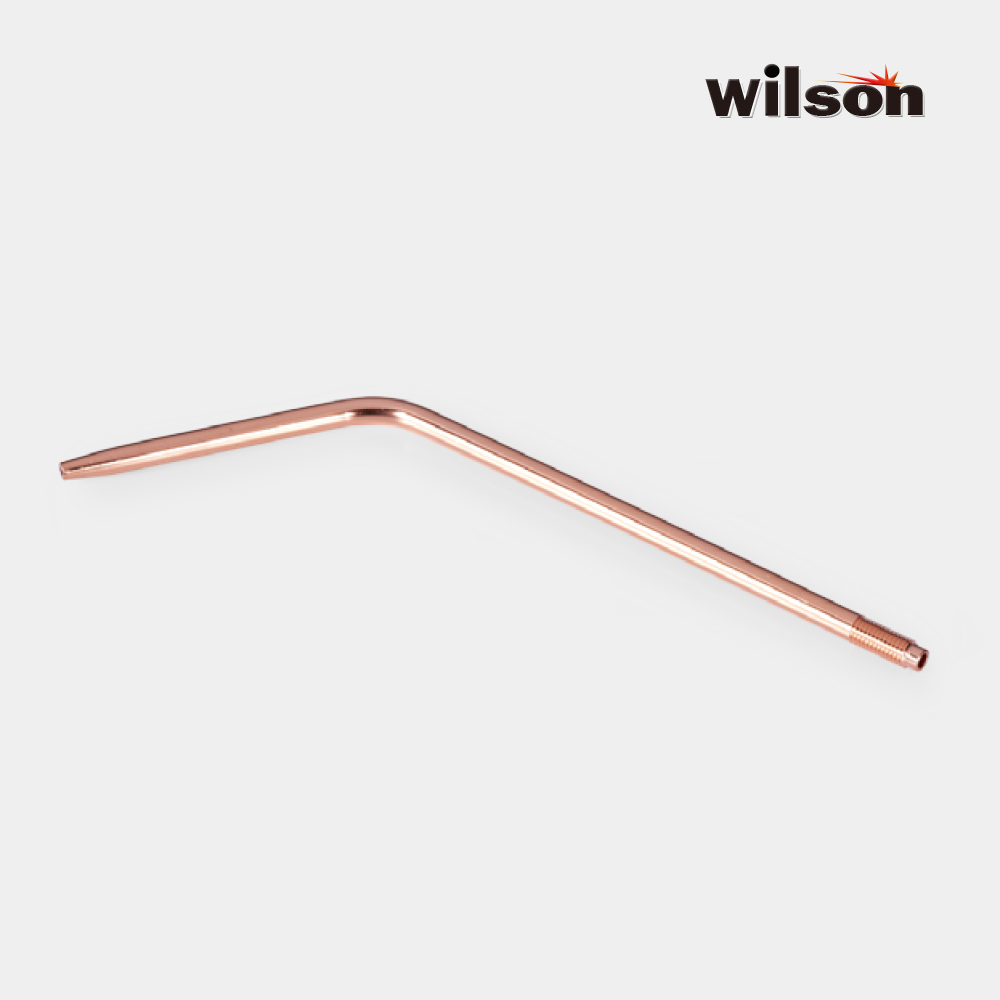

DH-W Welding Nozzle

,

Previous
Next

Description

DH-W*

DH-W high quality welding tips, suits to KAF-401 welding torch handle by adapting mixer KAF-403.

Specification

Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
DH-W1 0.9 0.15 0.15 140
DH-W2 1.2 0.15 0.15 140
DH-W3 2.0 0.15 0.15 140
DH-W5 2.6 0.15 0.15 140
DH-W7 3.2 0.15 0.15 140
KAF-W10 4.0 0.20 0.20 140
DH-W13 5.0 0.30 0.30 140
DH-W18 6.5 0.30 0.30 210
DH-W25 8.2 0.50 0.50 210
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
DH-W1 0.9 0.15 0.15 140
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
DH-W2 1.2 0.15 0.15 140
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
DH-W3 2.0 0.15 0.15 140
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
DH-W5 2.6 0.15 0.15 140
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
DH-W7 3.2 0.15 0.15 140
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
KAF-W10 4.0 0.20 0.20 140
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
DH-W13 5.0 0.30 0.30 140
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
DH-W18 6.5 0.30 0.30 210
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
DH-W25 8.2 0.50 0.50 210
