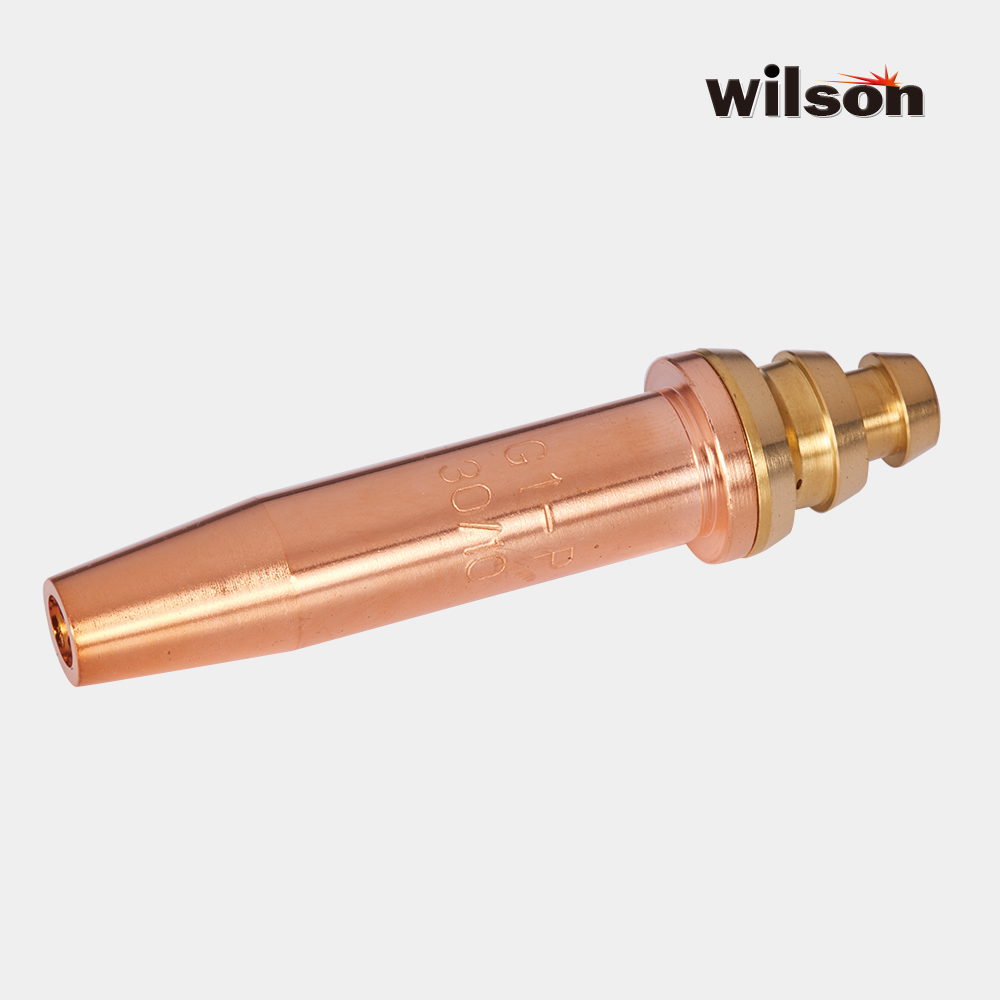

G1-P Propane Cutting Tip

,

Previous
Next

Description

G1-P

High quality cutting nozzle.
Oxygen Propane cutting.

Specification

Tip NumberCutting ThicknessOxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
G1-P-7/10 3-10 3.0-5.0 0.5-1.0 86
G1-P-10/10 10-25 5.0-7.0 0.5-1.0 86
G1-P-12/10 25-50 5.0-7.0 0.5-1.0 86
G1-P-16/10 50-80 5.0-7.0 0.5-1.0 86
G1-P-20/10 80-120 5.0-7.0 0.5-1.0 86
G1-P-25/10 120-200 5.0-7.0 0.5-1.0 86
G1-P-30/10 200-300 5.0-7.0 0.5-1.0 86
Tip NumberCutting ThicknessOxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
G1-P-7/10 3-10 3.0-5.0 0.5-1.0 86
Tip NumberCutting ThicknessOxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
G1-P-10/10 10-25 5.0-7.0 0.5-1.0 86
Tip NumberCutting ThicknessOxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
G1-P-12/10 25-50 5.0-7.0 0.5-1.0 86
Tip NumberCutting ThicknessOxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
G1-P-16/10 50-80 5.0-7.0 0.5-1.0 86
Tip NumberCutting ThicknessOxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
G1-P-20/10 80-120 5.0-7.0 0.5-1.0 86
Tip NumberCutting ThicknessOxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
G1-P-25/10 120-200 5.0-7.0 0.5-1.0 86
Tip NumberCutting ThicknessOxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
G1-P-30/10 200-300 5.0-7.0 0.5-1.0 86
