KAF-W Welding Nozzle

,

Previous
Next

Description

KAF-W*

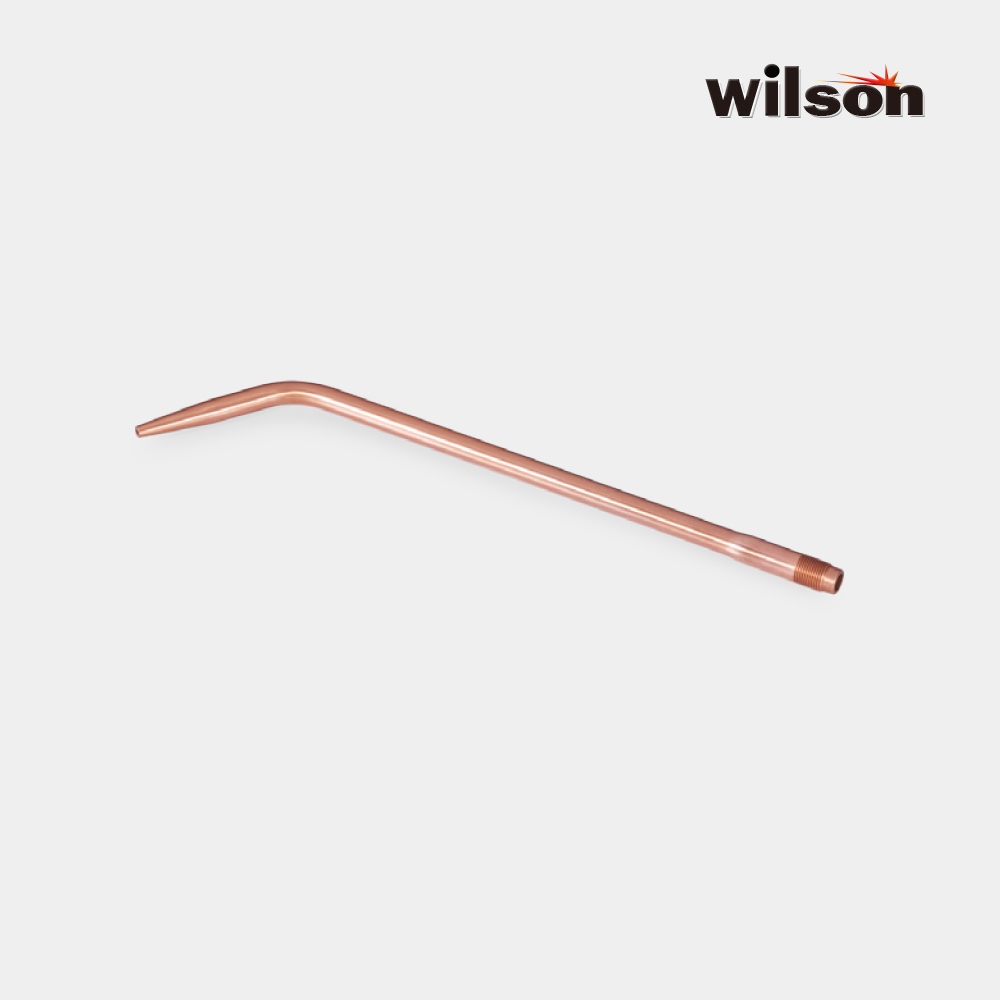

KAF-W high quality welding tips, suits to KAF-301 welding torch handle by adapting mixer KAF-303.

Specification

Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
KAF-W1 0.9 1.0 0.15 130
KAF-W2 1.2 1.0 0.15 130
KAF-W3 2.0 1.0 0.15 130
KAF-W5 2.6 1.0 0.15 130
KAF-W7 3.2 1.0 0.15 175
KAF-W10 4.0 2.0 0.20 175
KAF-W13 5.0 2.0 0.30 175
KAF-W18 6.5 2.5 0.40 280
KAF-W25 8.2 2.5 0.40 280
KAF-W35 10.0 2.5 0.60 280
KAF-W45 13.0 3.0 0.60 335
KAF-W55 19.0 3.0 0.60 335
KAF-W70 25.0 3.0 0.60 335
KAF-W90 25+ 3.0 0.60 335
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
KAF-W1 0.9 1.0 0.15 130
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
KAF-W2 1.2 1.0 0.15 130
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
KAF-W3 2.0 1.0 0.15 130
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
KAF-W5 2.6 1.0 0.15 130
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
KAF-W7 3.2 1.0 0.15 175
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
KAF-W10 4.0 2.0 0.20 175
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
KAF-W13 5.0 2.0 0.30 175
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
KAF-W18 6.5 2.5 0.40 280
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
KAF-W25 8.2 2.5 0.40 280
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
KAF-W35 10.0 2.5 0.60 280
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
KAF-W45 13.0 3.0 0.60 335
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
KAF-W55 19.0 3.0 0.60 335
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
KAF-W70 25.0 3.0 0.60 335
Tip NumberThickness Welded (mm)Oxygen Pressure (Bar)Acetylene Pressure (Bar)Tip Length (mm)
KAF-W90 25+ 3.0 0.60 335
