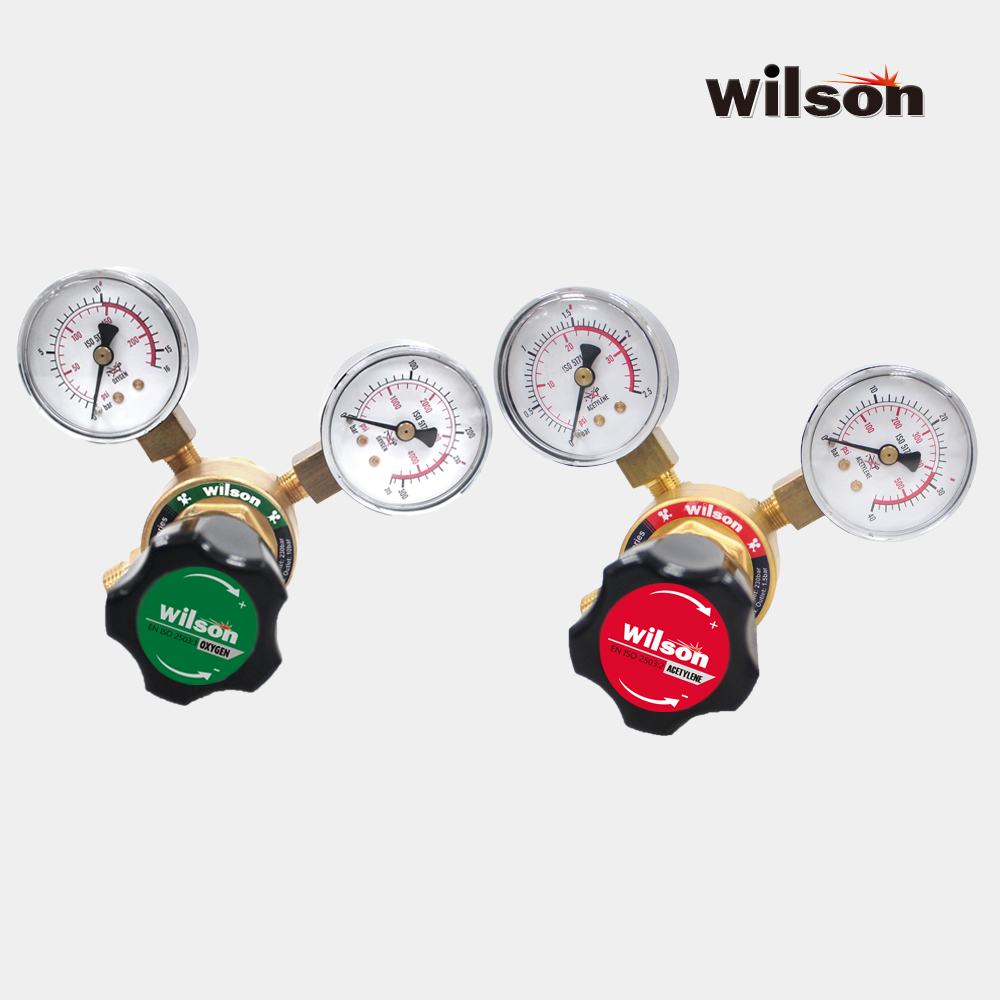

KH601 Gas Pressure Regulator. Light Duty.
Previous
Next
Description
KH601
‧A compact and economic design but the same features as larger pressure regulators.
‧One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination.
‧Provides light weight, small size and better budget.
‧Drop forged fine brass body and bonnet.
‧Neoprene diaphragm
‧2.1" gauges.
‧Rear Entry (Side Entry Optional)
Specification
| Model | Gas | Max. Inlet Pressure | Max.Delivery Pressure |
|---|---|---|---|
| KH601-1.5M-AC | Acetylene | 25bar | 1.5bar/21psi |
| KH601-3.5M-LP | Propane | 25bar | 3.5bar/50psi |
| KH601-10M-OX | Oxygen/Argon/CO2/N2/Air/He/H2 | 200bar | 10bar/145psi |
ModelGasMax. Inlet PressureMax.Delivery Pressure
KH601-1.5M-AC
Acetylene
25bar
1.5bar/21psi
ModelGasMax. Inlet PressureMax.Delivery Pressure
KH601-3.5M-LP
Propane
25bar
3.5bar/50psi
ModelGasMax. Inlet PressureMax.Delivery Pressure
KH601-10M-OX
Oxygen/Argon/CO2/N2/Air/He/H2
200bar
10bar/145psi
