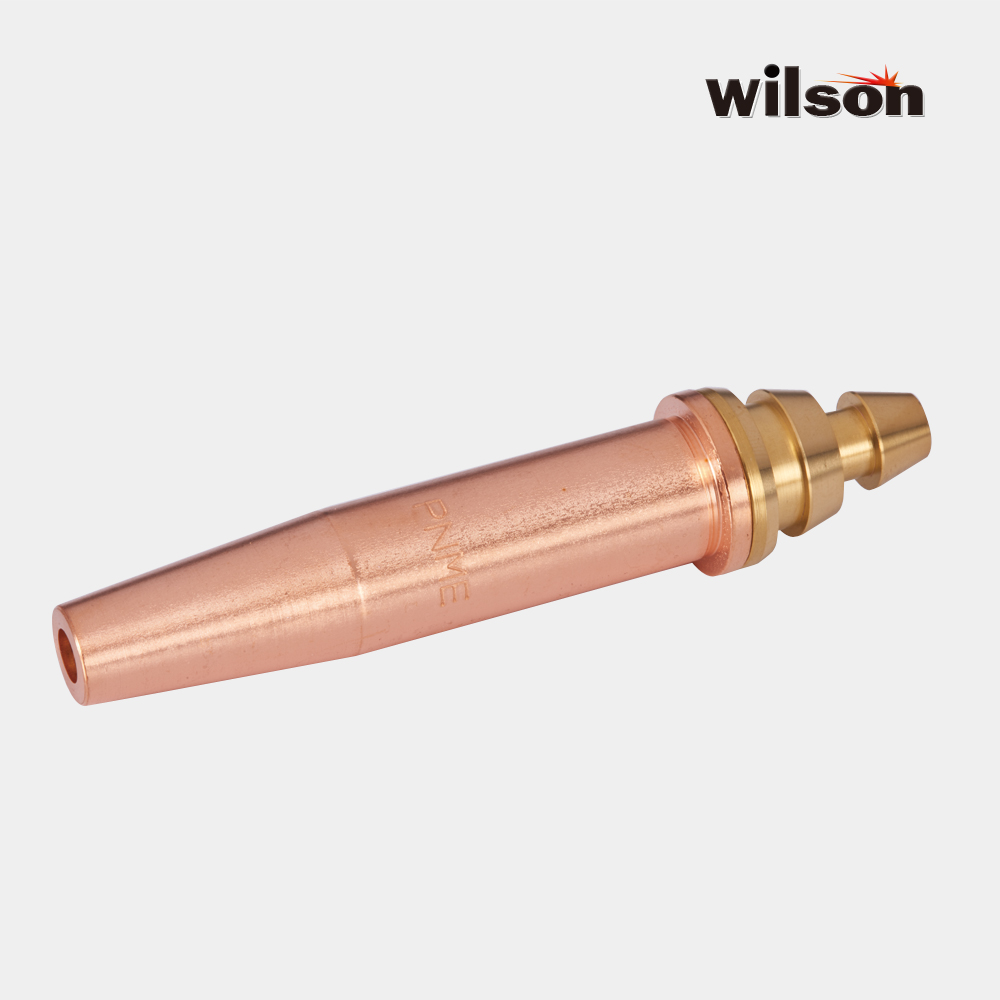

Wilson PNME Cutting Tip.
Previous
Next
Description
PNME-*
High quality cutting nozzle.
Propane Oxygen cutting.
Specification
Tip Number | Cutting Thickness (mm) | Oxy. Pressure (Bar) | LPG Pressure (Bar) | Length (mm) |
---|---|---|---|---|
PNME-1 (1/32") | 3-6 | 2.5-3.5 | 0.3 | 92 |
PNME-2 (3/64") | 5-12 | 3.0-4.0 | 0.3 | 92 |
PNME-3 (1/16") | 10-75 | 3.5-4.5 | 0.3 | 92 |
PNME-4 (5/64") | 70-100 | 4.5-5.0 | 0.5 | 92 |
PNME-5 (3/32") | 90-150 | 4.5-5.5 | 0.5 | 92 |
PNME-6 (7/64") | 140-200 | 5.0-6.5 | 0.5 | 92 |
PNME-7 (1/8") | 190-300 | 6.0-7.5 | 0.8 | 92 |
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
PNME-1 (1/32")
3-6
2.5-3.5
0.3
92
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
PNME-2 (3/64")
5-12
3.0-4.0
0.3
92
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
PNME-3 (1/16")
10-75
3.5-4.5
0.3
92
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
PNME-4 (5/64")
70-100
4.5-5.0
0.5
92
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
PNME-5 (3/32")
90-150
4.5-5.5
0.5
92
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
PNME-6 (7/64")
140-200
5.0-6.5
0.5
92
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
PNME-7 (1/8")
190-300
6.0-7.5
0.8
92
