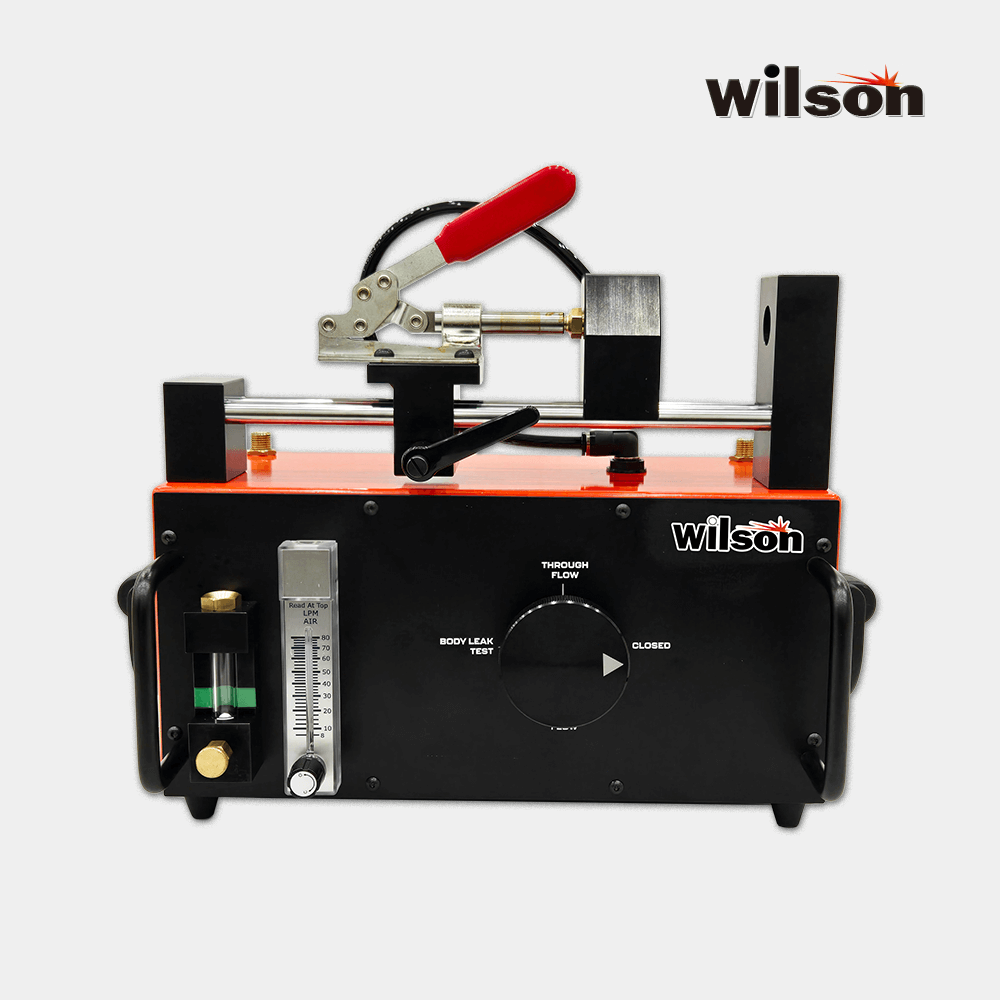

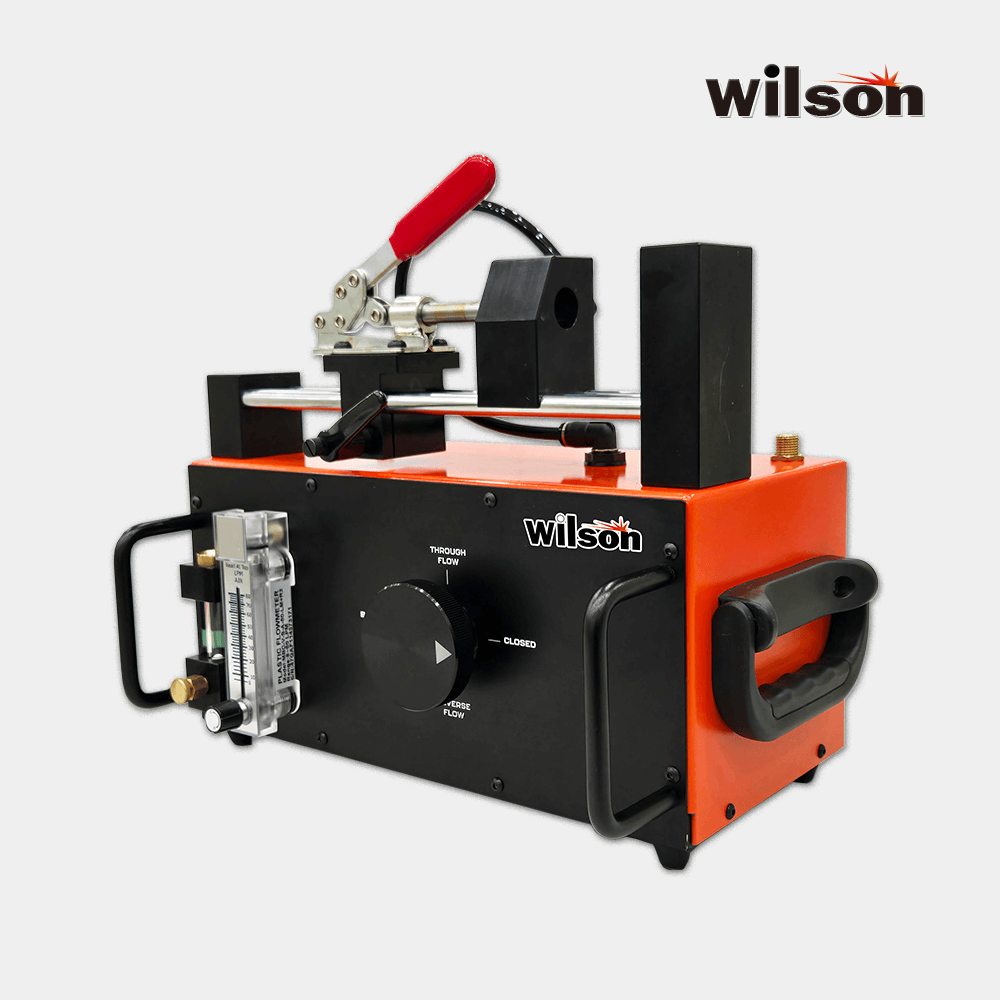

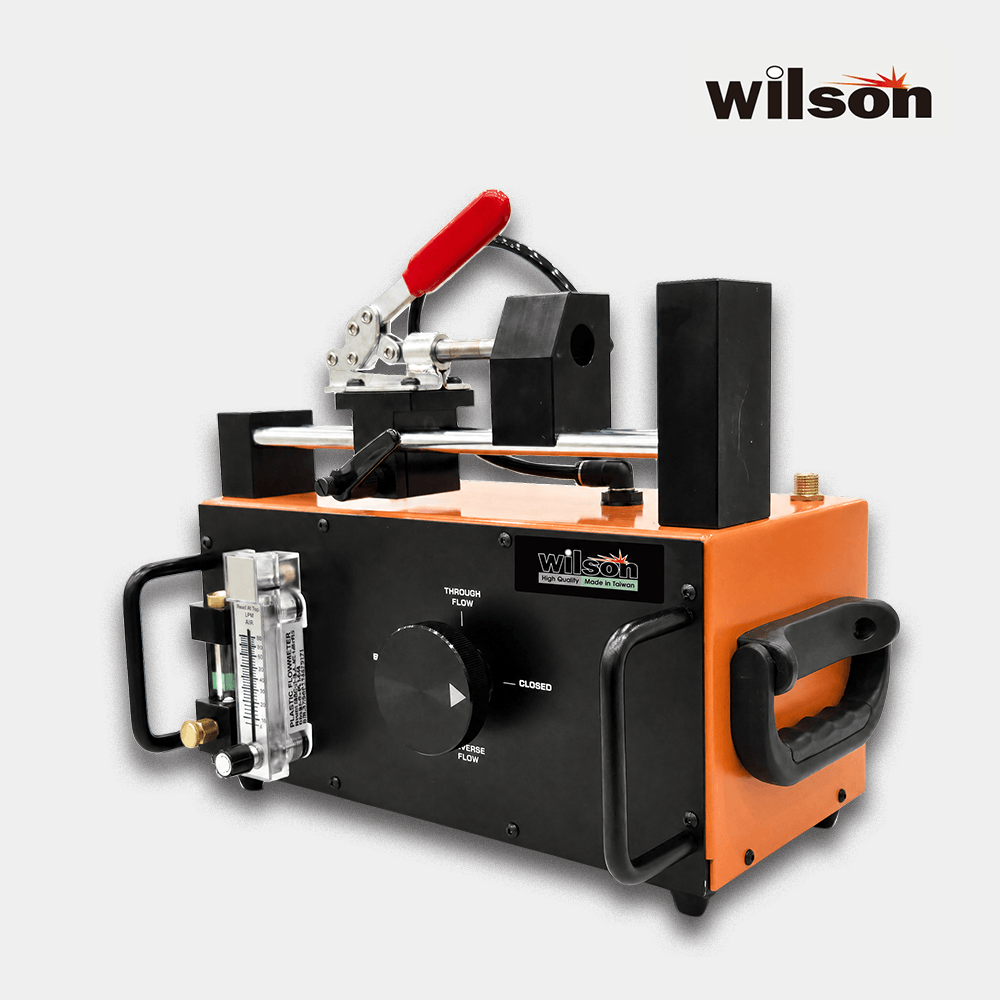

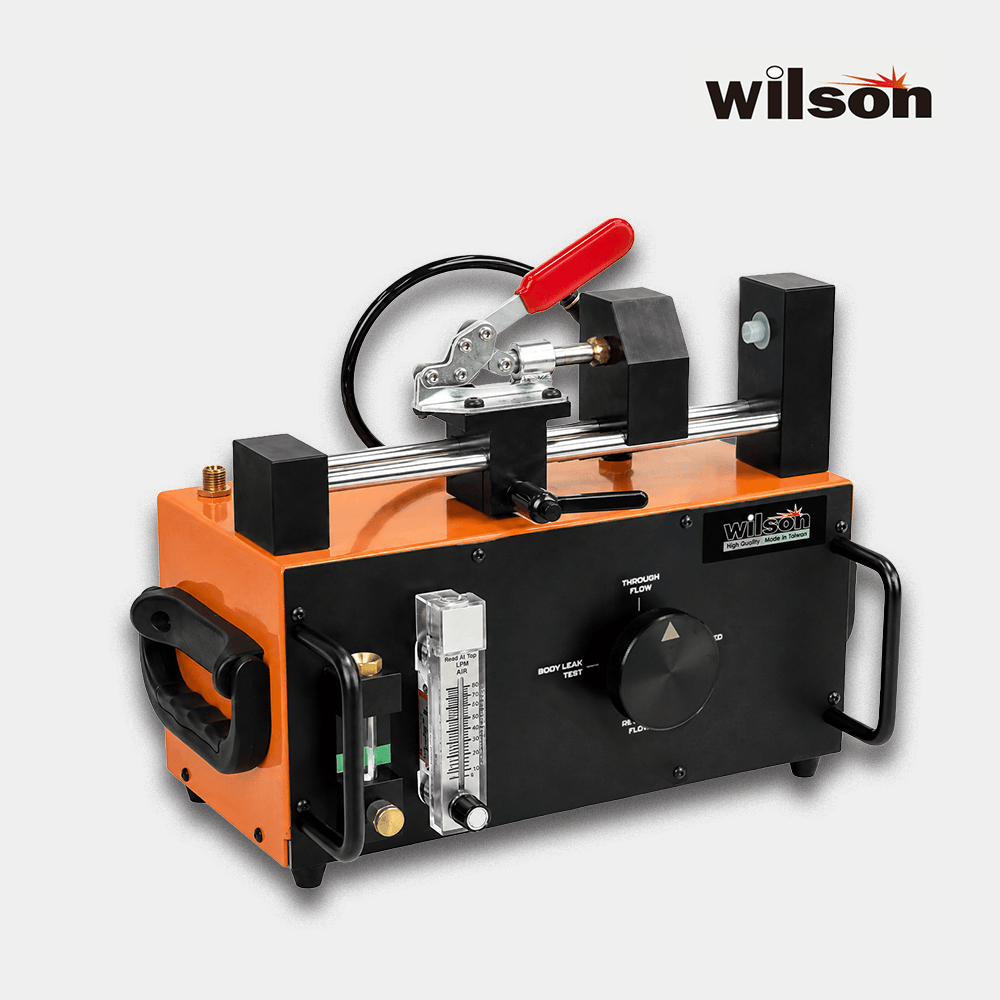

Wilson SafeTest FBA Kit【KAT-288】

,

Wilson SafeTest FBA Kit-KAT288
Wilson SafeTest FBA Kit-KAT288
Wilson SafeTest FBA Kit-KAT288
Wilson SafeTest FBA Kit-KAT288
Previous
Next

Description

KAT-288

【Testing Functions】
‧Body Leak Test
Confirms correct gas flow capacity through the flashback arrestor (minimum flow varies by model).

‧Reverse Prevention Test
Ensures the unit effectively blocks reverse gas flow.

‧Through Flow Verification
Checks for leakage from the body under a test pressure of 2 kg/cm².

【Compatibility】
‧FBAs up to 130mm length / 50mm diameter
‧ For sizes larger than this, external accessories are available as an option.

【Advantages】
‧Reliable, repeatable testing for compliance and safety assurance
‧Durable design with protective frame and retractable handle for portability
‧Clear flow and backflow indication for fast results
‧Compatible with a wide range of Wilson and non-Wilson FBAs

Specification

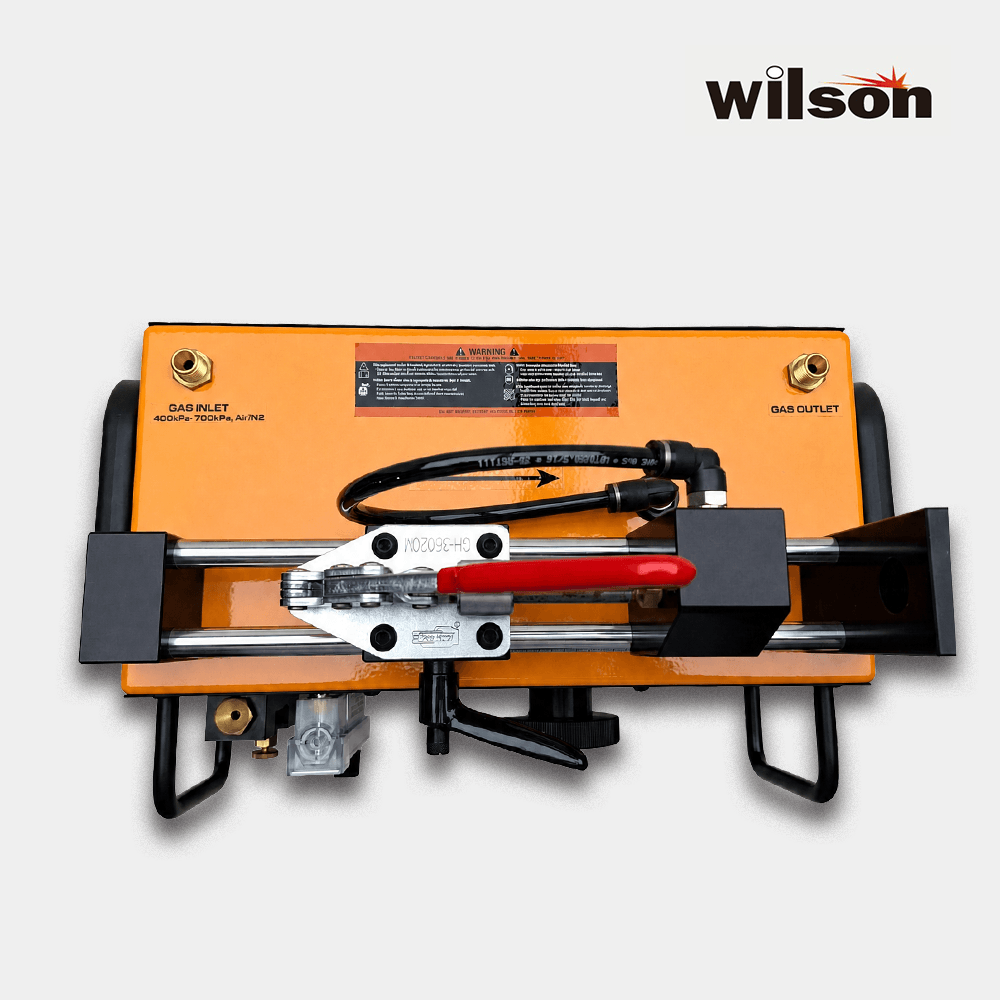

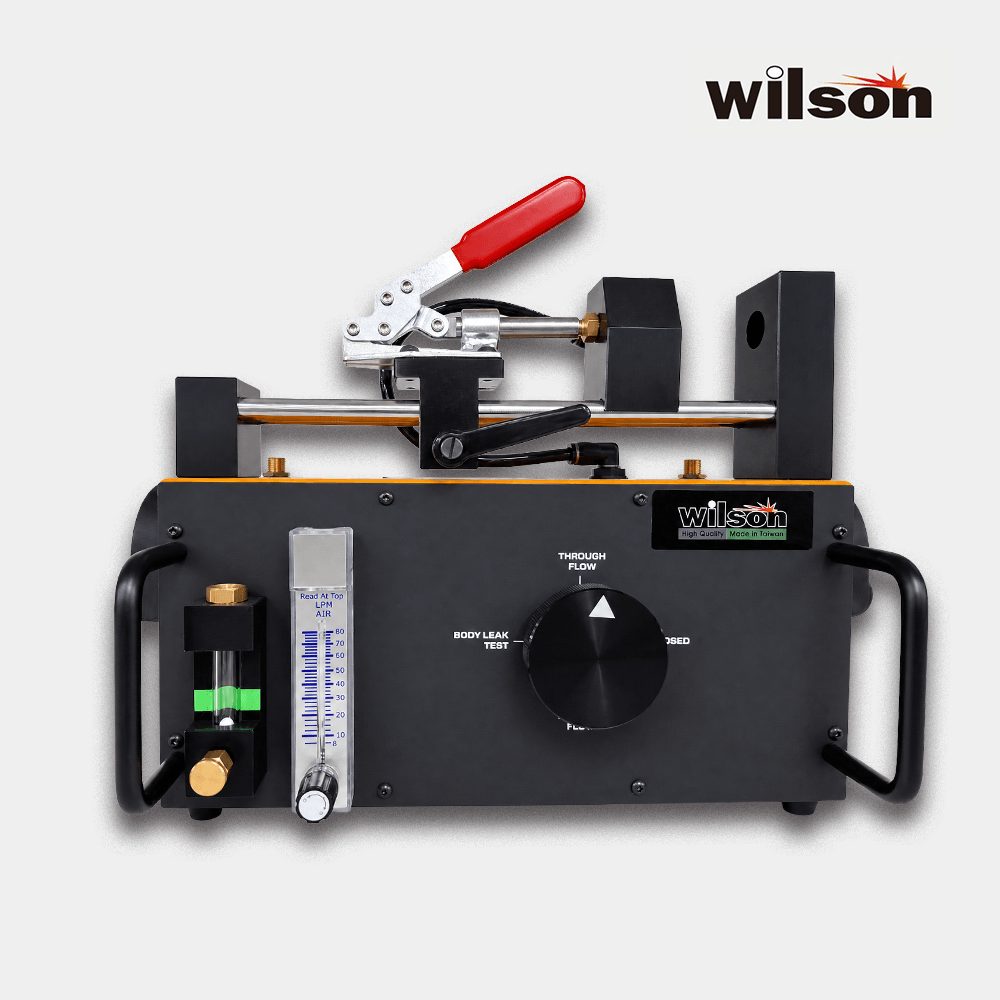

【Device Components】 Stationary Clamp Block ; Securing Lever ; Regulation Dial ; Sliding Clamp Block ; Collection Funnel ; Control Wheel ; Quick-Release Clamps ; Backflow Indicator ; Gas Inlet Port (G1/4"-19 RH Male) ; Tension Nut ; Bleed Screw ; Gas Outlet Port (G1/4"-19 RH Male) ; Panel-Mounted Flowmeter ; Protective Frame ; Retractable Handle

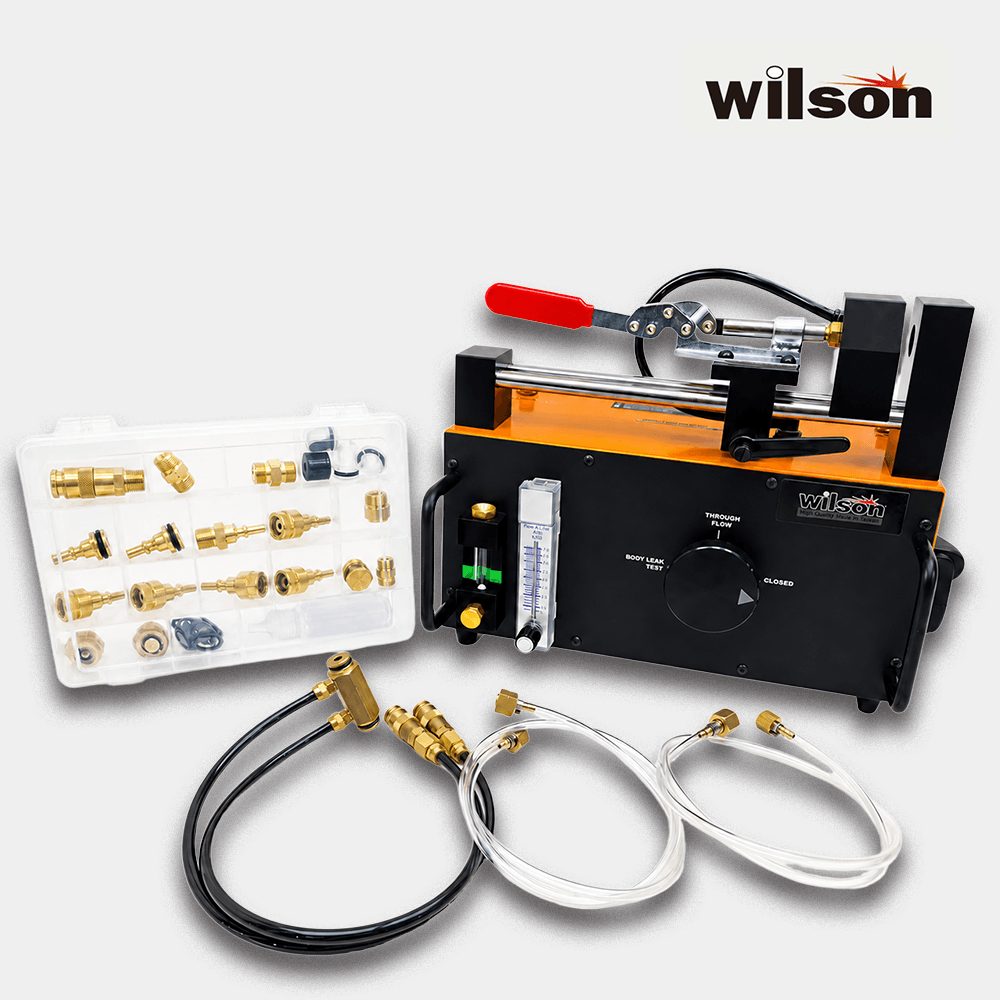

【Adaptor Kit Accessories】 All-in-one kit : adaptors, plugs, O-rings, and water bottle included.
【Device Components】 Stationary Clamp Block ; Securing Lever ; Regulation Dial ; Sliding Clamp Block ; Collection Funnel ; Control Wheel ; Quick-Release Clamps ; Backflow Indicator ; Gas Inlet Port (G1/4"-19 RH Male) ; Tension Nut ; Bleed Screw ; Gas Outlet Port (G1/4"-19 RH Male) ; Panel-Mounted Flowmeter ; Protective Frame ; Retractable Handle
【Adaptor Kit Accessories】 All-in-one kit : adaptors, plugs, O-rings, and water bottle included.
