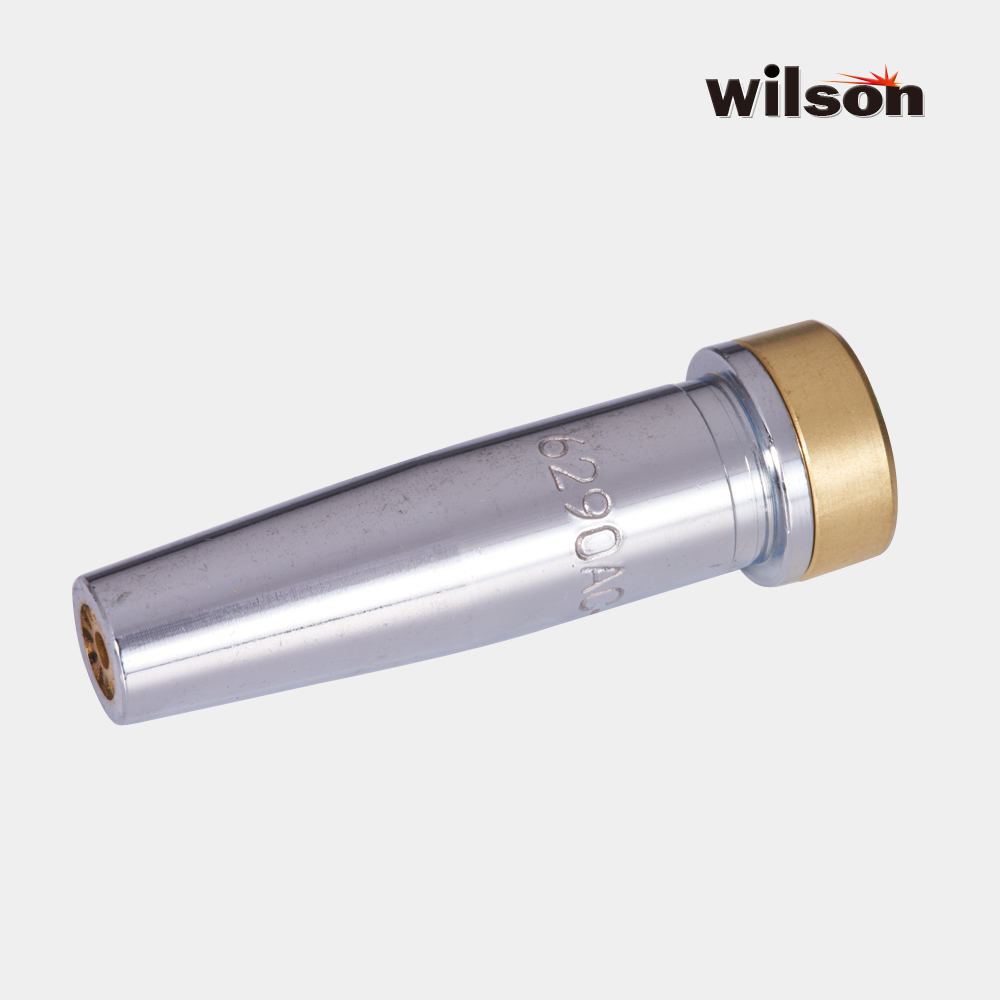

6290-AC Cutting Tip.

,

Previous
Next

Description

6290-*AC

High quality cutting nozzle.
Acetylene Oxygen cutting.
European market oriented.

Specification

Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
6290-000AC 1-5 1.5 0.5 53
6290-00AC 5-10 1.5 0.5 53
6290-0AC 10-15 2.0 1.0 53
6290-1AC 15-25 2.5 1.0 53
6290-2AC 25-50 3.0 1.0 53
6290-3AC 50-100 3.5 1.0 53
6290-4AC 100-175 4.0 1.5 53
6290-5AC 175-250 5.0 1.5 53
6290-6AC 250-300 6.0 1.5 53
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
6290-000AC 1-5 1.5 0.5 53
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
6290-00AC 5-10 1.5 0.5 53
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
6290-0AC 10-15 2.0 1.0 53
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
6290-1AC 15-25 2.5 1.0 53
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
6290-2AC 25-50 3.0 1.0 53
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
6290-3AC 50-100 3.5 1.0 53
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
6290-4AC 100-175 4.0 1.5 53
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
6290-5AC 175-250 5.0 1.5 53
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)Acet. Pressure (Bar)Length (mm)
6290-6AC 250-300 6.0 1.5 53
