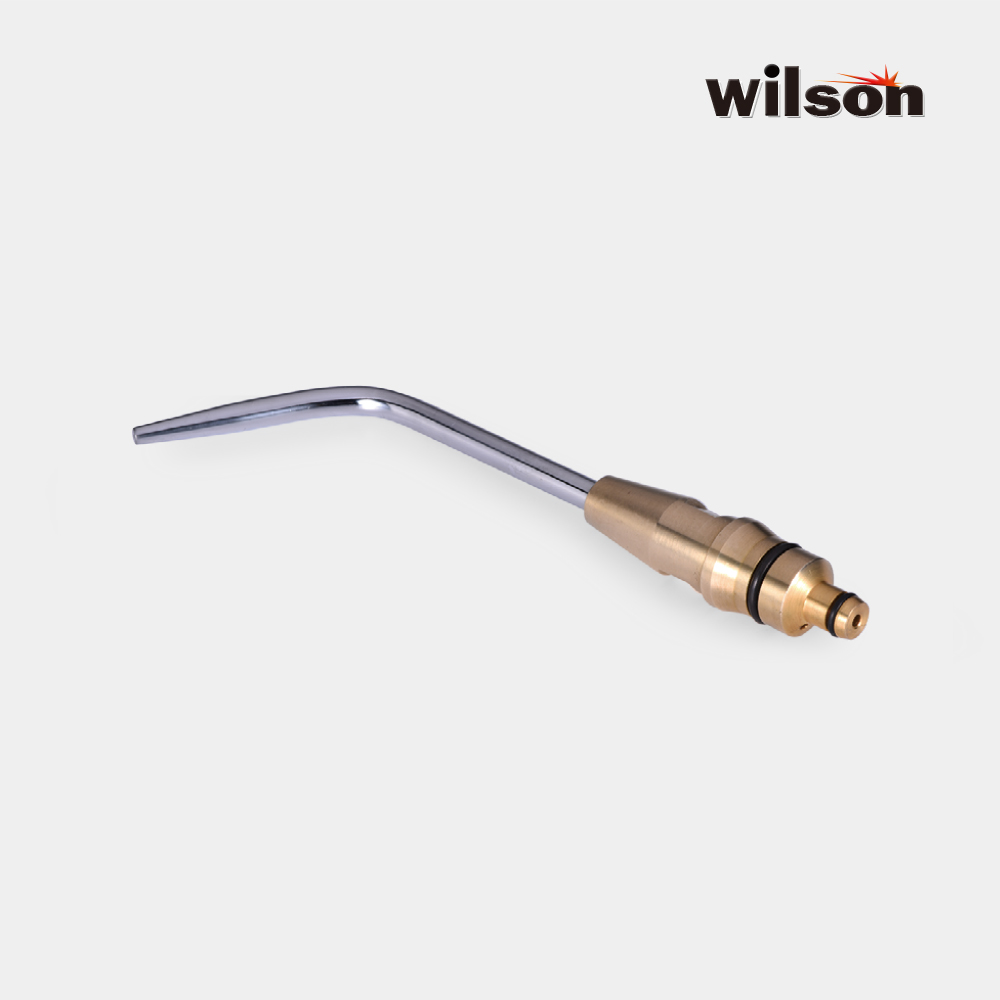

KG21-W Oxygen Acetylene Welding Tip, Heavy Duty.

,

Previous
Next

Description

KG21-W*

High quality Oxy-Acetylene welding nozzle series with mixer.
Fits on Wilson KAH-X21 torch handle. Nordic Market oriented.

Specification

Tip NumberSizeLength (mm)Orifice (mm)
KG21-W1 (80L) 1 215 0.7
KG21-W2 (160L) 2 230 1.0
KG21-W3 (315L) 3 250 1.2
KG21-W4 (500L) 4 270 1.5
KG21-W5 (800L) 5 290 2.0
KG21-W5E (1000L) 5E 310 2.4
KG21-W6 (1250L) 6 330 2.7
Tip NumberSizeLength (mm)Orifice (mm)
KG21-W1 (80L) 1 215 0.7
Tip NumberSizeLength (mm)Orifice (mm)
KG21-W2 (160L) 2 230 1.0
Tip NumberSizeLength (mm)Orifice (mm)
KG21-W3 (315L) 3 250 1.2
Tip NumberSizeLength (mm)Orifice (mm)
KG21-W4 (500L) 4 270 1.5
Tip NumberSizeLength (mm)Orifice (mm)
KG21-W5 (800L) 5 290 2.0
Tip NumberSizeLength (mm)Orifice (mm)
KG21-W5E (1000L) 5E 310 2.4
Tip NumberSizeLength (mm)Orifice (mm)
KG21-W6 (1250L) 6 330 2.7
Tip NumberSizeLength (mm)Orifice (mm)
