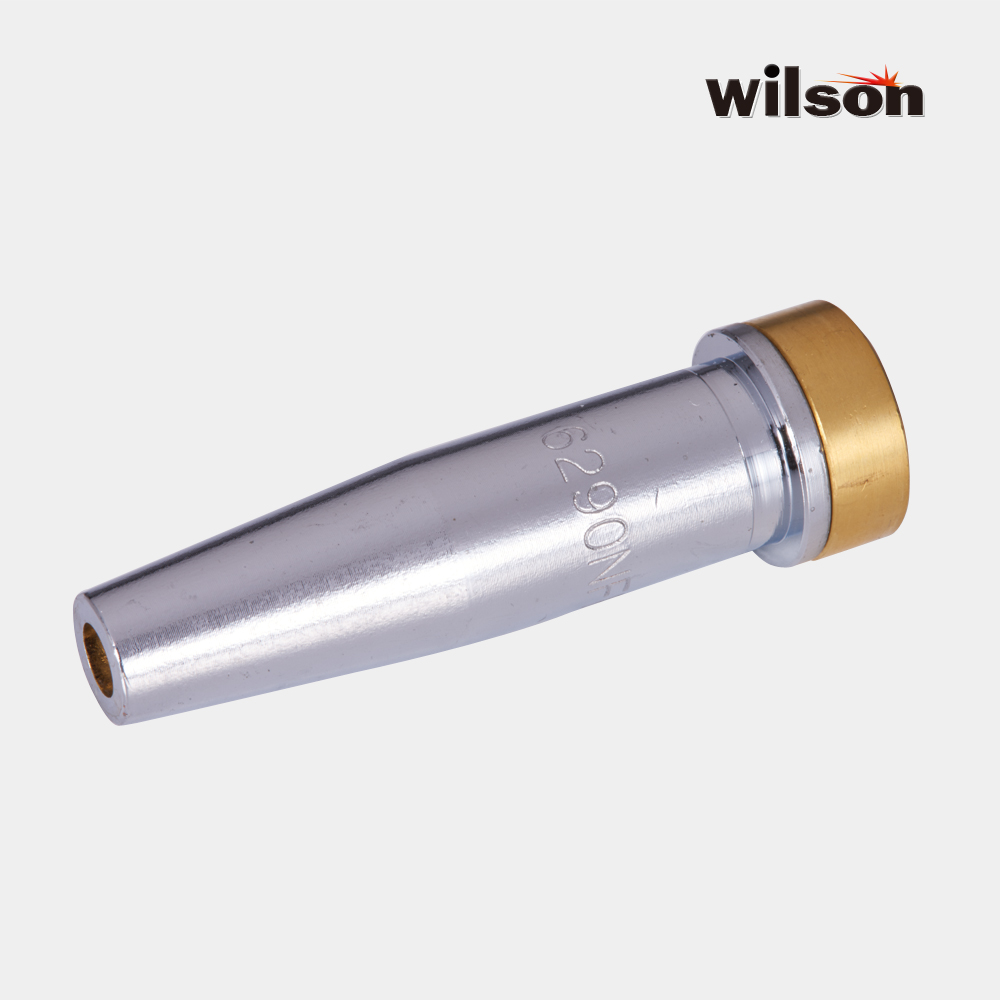

6290-NX Cutting Tip.

,

Previous
Next

Description

6290-NX*

High quality cutting nozzle.
Propane Oxygen cutting.
European market oriented.

Specification

Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-NX000 1-5 1.5 0.5 53
6290-NX00 5-10 1.5 0.5 53
6290-NX0 10-15 2.0 1.0 53
6290-NX1 15-25 2.5 1.0 53
6290-NX2 25-50 3.0 1.0 53
6290-NX3 50-100 3.5 1.0 53
6290-NX4 100-175 4.0 1.5 53
6290-NX5 175-250 5.0 1.5 53
6290-NX6 250-300 6.0 1.5 53
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-NX000 1-5 1.5 0.5 53
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-NX00 5-10 1.5 0.5 53
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-NX0 10-15 2.0 1.0 53
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-NX1 15-25 2.5 1.0 53
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-NX2 25-50 3.0 1.0 53
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-NX3 50-100 3.5 1.0 53
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-NX4 100-175 4.0 1.5 53
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-NX5 175-250 5.0 1.5 53
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-NX6 250-300 6.0 1.5 53
