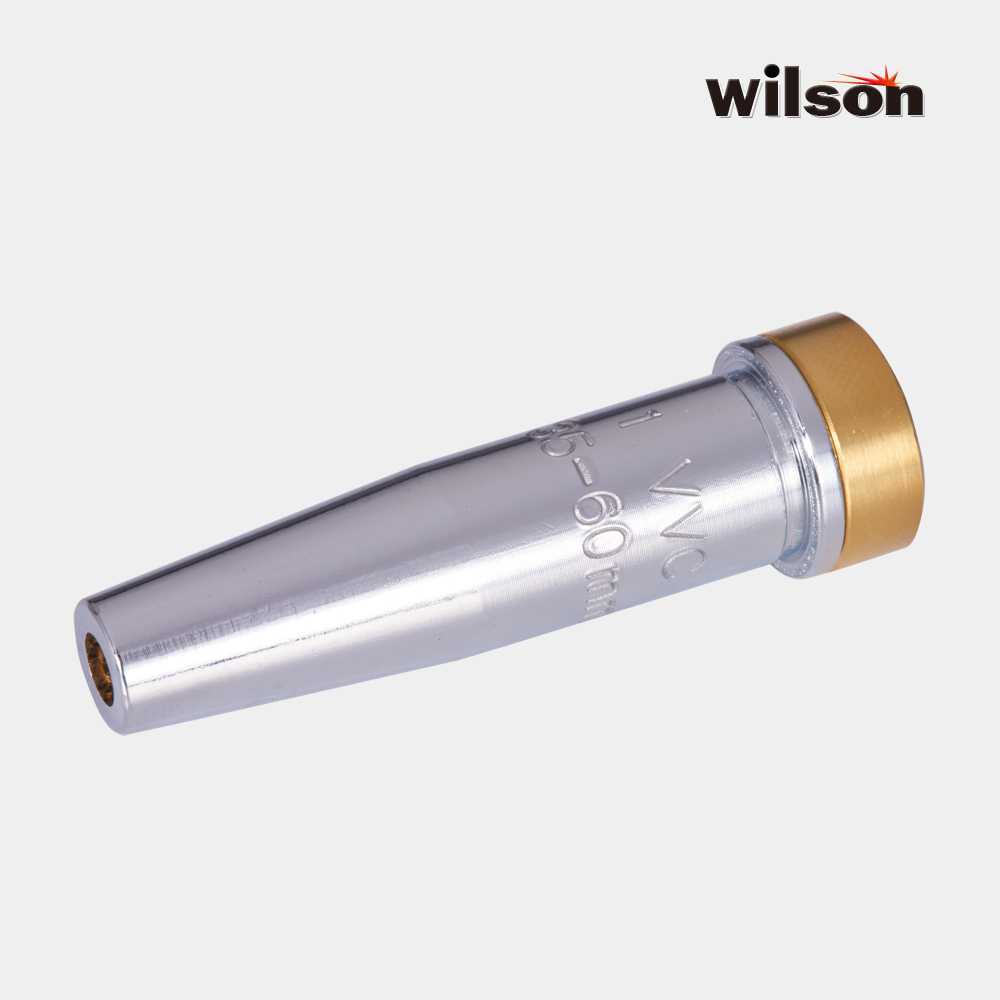

6290-VVC Cutting Tip.
Previous
Next
Description
6290-*VVC
High quality cutting nozzle.
Propane Oxygen cutting.
European market oriented.
Specification
Tip Number | Cutting Thickness (mm) | Oxy. Pressure (Bar) | LPG Pressure (Bar) | Length (mm) |
---|---|---|---|---|
6290-5/0VVC | 2-4 | 2.5 | 0.015-0.2 | 57 |
6290-4/0VVC | 4-6 | 3.5 | 0.50.015-0.2 | 57 |
6290-3/0VVC | 6-9 | 5.0 | 0.015-0.2 | 57 |
6290-00VVC | 9-12.5 | 5.0 | 0.015-0.2 | 57 |
6290-0VVC | 12.5-20 | 6.0 | 0.015-0.2 | 57 |
6290-1/2VVC | 20-35 | 7.0 | 0.015-0.2 | 57 |
6290-1VVC | 35-60 | 7.0 | 0.015-0.2 | 57 |
6290-1 1/2 VVC | 60-75 | 6.5 | 0.015-0.2 | 57 |
6290-2VVC | 75-125 | 7.0 | 0.015-0.2 | 57 |
6290-2 1/2 VVC | 125-150 | 6.5 | 0.015-0.2 | 57 |
6290-3VVC | 150-175 | 7.0 | 0.015-0.2 | 57 |
6290-4VVC | 175-200 | 6.5 | 0.015-0.2 | 57 |
6290-5VVC | 200-225 | 6.0 | 0.015-0.2 | 57 |
6290-5 1/2 VVC | 225-250 | 6.0 | 0.015-0.2 | 57 |
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-5/0VVC
2-4
2.5
0.015-0.2
57
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-4/0VVC
4-6
3.5
0.50.015-0.2
57
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-3/0VVC
6-9
5.0
0.015-0.2
57
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-00VVC
9-12.5
5.0
0.015-0.2
57
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-0VVC
12.5-20
6.0
0.015-0.2
57
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-1/2VVC
20-35
7.0
0.015-0.2
57
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-1VVC
35-60
7.0
0.015-0.2
57
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-1 1/2 VVC
60-75
6.5
0.015-0.2
57
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-2VVC
75-125
7.0
0.015-0.2
57
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-2 1/2 VVC
125-150
6.5
0.015-0.2
57
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-3VVC
150-175
7.0
0.015-0.2
57
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-4VVC
175-200
6.5
0.015-0.2
57
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-5VVC
200-225
6.0
0.015-0.2
57
Tip NumberCutting Thickness (mm)Oxy. Pressure (Bar)LPG Pressure (Bar)Length (mm)
6290-5 1/2 VVC
225-250
6.0
0.015-0.2
57
