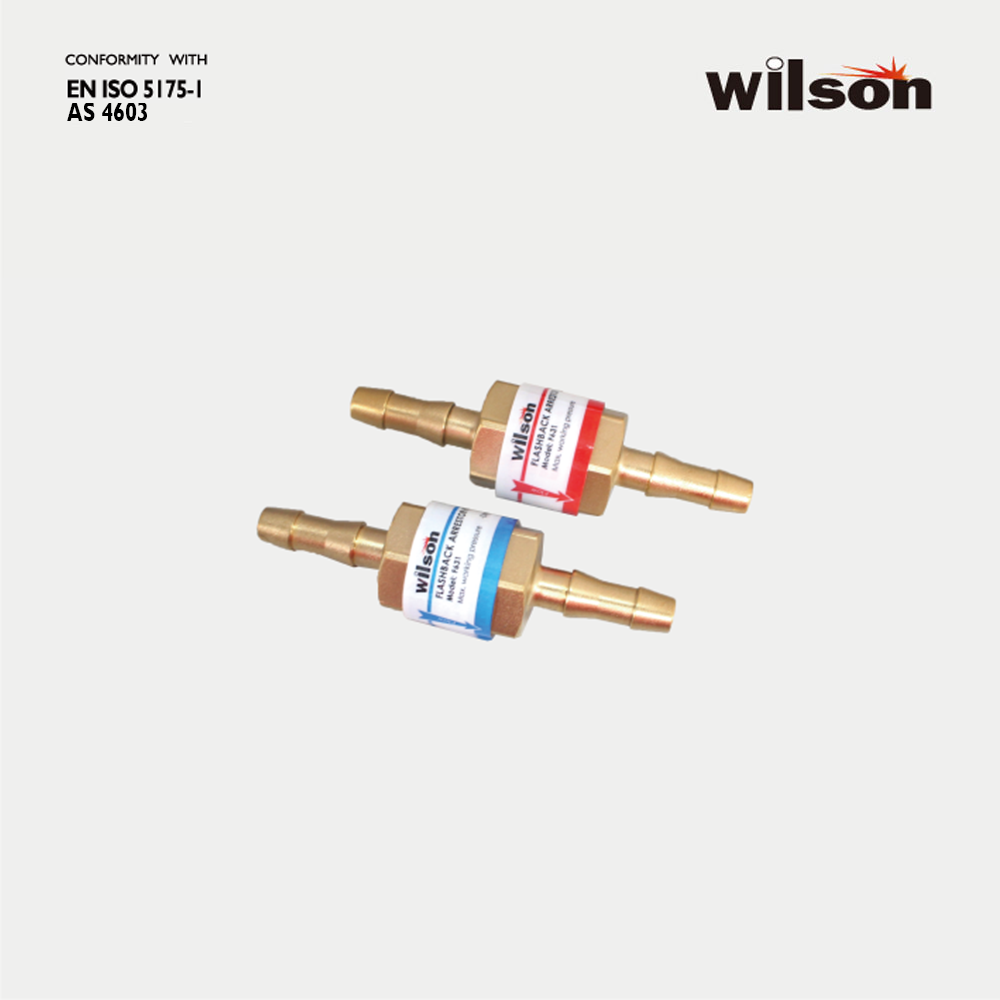

Wilson F631 Series Flashback Arrestors for Hose. EN-ISO 5175-1 & AS 4603.

,

Wilson F631 Series Flashback Arrestors for Hose. EN-ISO 5175-1 & AS 4603.
Wilson F631 Series Flashback Arrestors for Hose. EN-ISO 5175-1 & AS 4603.
Previous
Next

Description

F631-*

．Function: DF/FA/NV
  ╴ DF(Dust Filter)
  ╴ FA(Flame Arrestor)
  ╴ NV(Non-return Valve)
．Size: Φ21.3×L86mm
．Maximum working pressure for UL:
  ╴ Oxygen: 145Psi (10Bar)
  ╴ Acetylene: 15Psi (1Bar)
  ╴ MPS Gas: 22Psi (1.5Bar)
  ╴ LP Gas, Hydrogen, Methane, Natural Gas: 50Psi (3.5Bar)
．Maximum working pressure for AS 4603 & EN ISO 5175-1:
  ╴ Oxygen: 360Psi (25Bar)
  ╴ Acetylene / MPS Gas: 22Psi (1.5Bar)
  ╴ Hydrogen Gas: 50Psi (3.5Bar)
  ╴ LP-Gas, Methane, Natural Gas: 72.5Psi (5.0Bar)

Specification

ModelGasMax Flow (m3/h)Inlet dia (mm)Outlet dia (mm)
F631-8R Oxygen 40.5 8 8
F631-8L Fuel Gas 14.52 8 8
F631-6R Oxygen 40.5 6 6
F631-6L Fuel Gas 14.52 6 6
ModelGasMax Flow (m3/h)Inlet dia (mm)Outlet dia (mm)
F631-8R Oxygen 40.5 8 8
ModelGasMax Flow (m3/h)Inlet dia (mm)Outlet dia (mm)
F631-8L Fuel Gas 14.52 8 8
ModelGasMax Flow (m3/h)Inlet dia (mm)Outlet dia (mm)
F631-6R Oxygen 40.5 6 6
ModelGasMax Flow (m3/h)Inlet dia (mm)Outlet dia (mm)
F631-6L Fuel Gas 14.52 6 6
